Withstand voltage tester is an AC high voltage safety measurement instrument, widely used in electronic instruments, electronic equipment, electronic components, electrical equipment, bakelite appliances, rubber, high voltage cable and motor withstand voltage test, also applicable to household appliances withstand voltage test.
Hot Tags:
withstand voltage testerAc hipot testerhigh voltage testerac high voltage test equipmentac hipot instrumentsac dielectric test set supplier
II. AC withstand voltage tester Working Principle
III. HM2670 AC hipot tester main technical parameter
Parameter Item
Technical Specifications & Values
Testing voltage
AC: 0.5kV ~ 5kV ±5%
Leakage current setting value
AC: 0.2 ~ 20 (mA) adjustable
Leakage current setting accuracy
±5%
Output power
100VA
Output waveform
50Hz Sine waveform
Timing
1 ~ 99 (s) ±5% manual ∞ adjustable
Power source
AC 220V ±10% 50Hz ±2Hz
Environment Humidity
RH ≤ 75% RH
Operating Temperature
0ºC ~ 40ºC
Environmental Requirements: There should be no strong electromagnetic interference source around, no large amount of dust and corrosive gas, and good ventilation.
Power loss: quiescent power drain < 30VA.

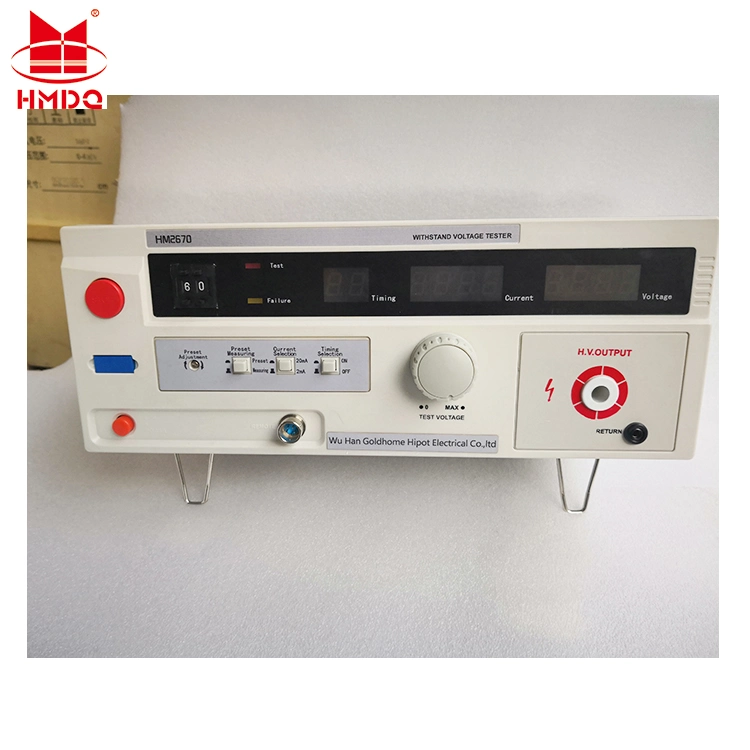

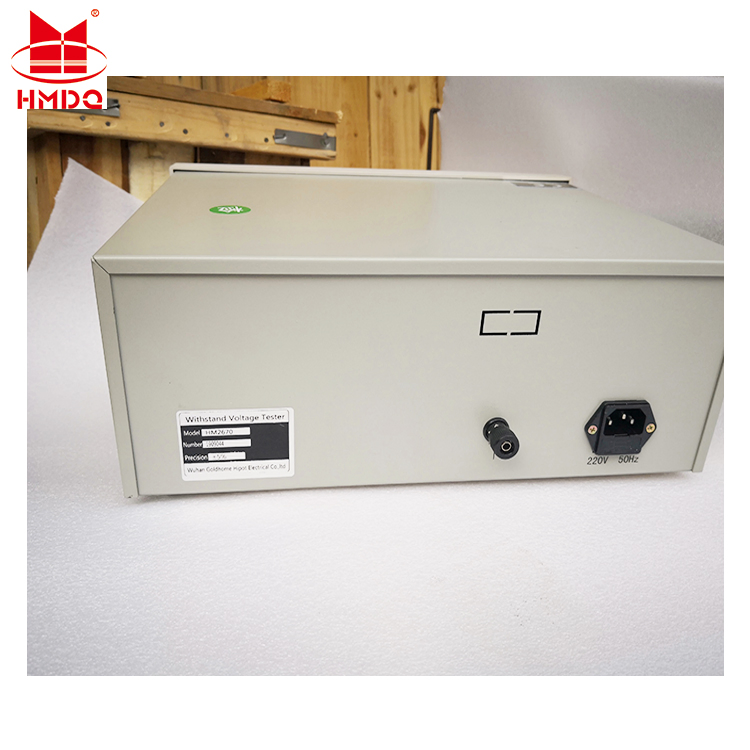

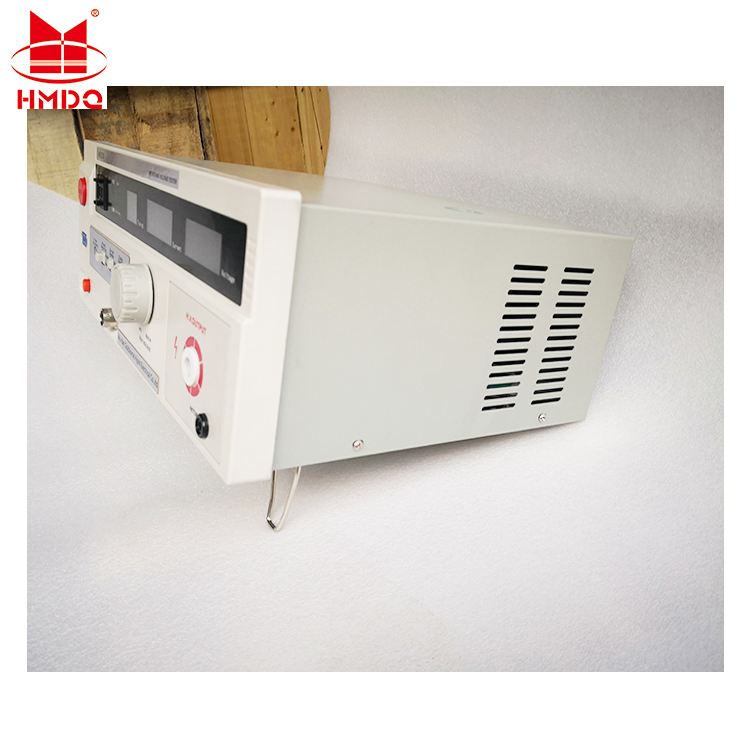

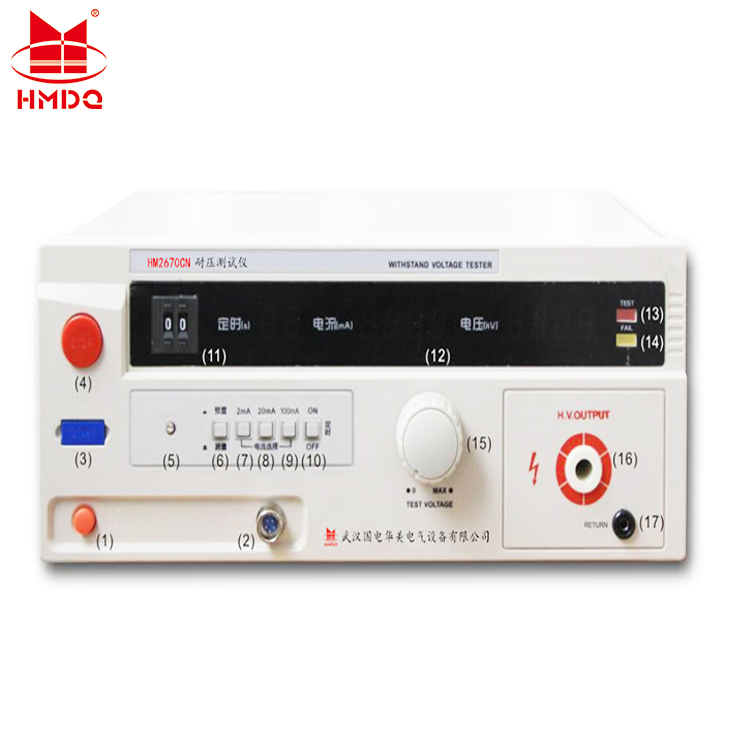

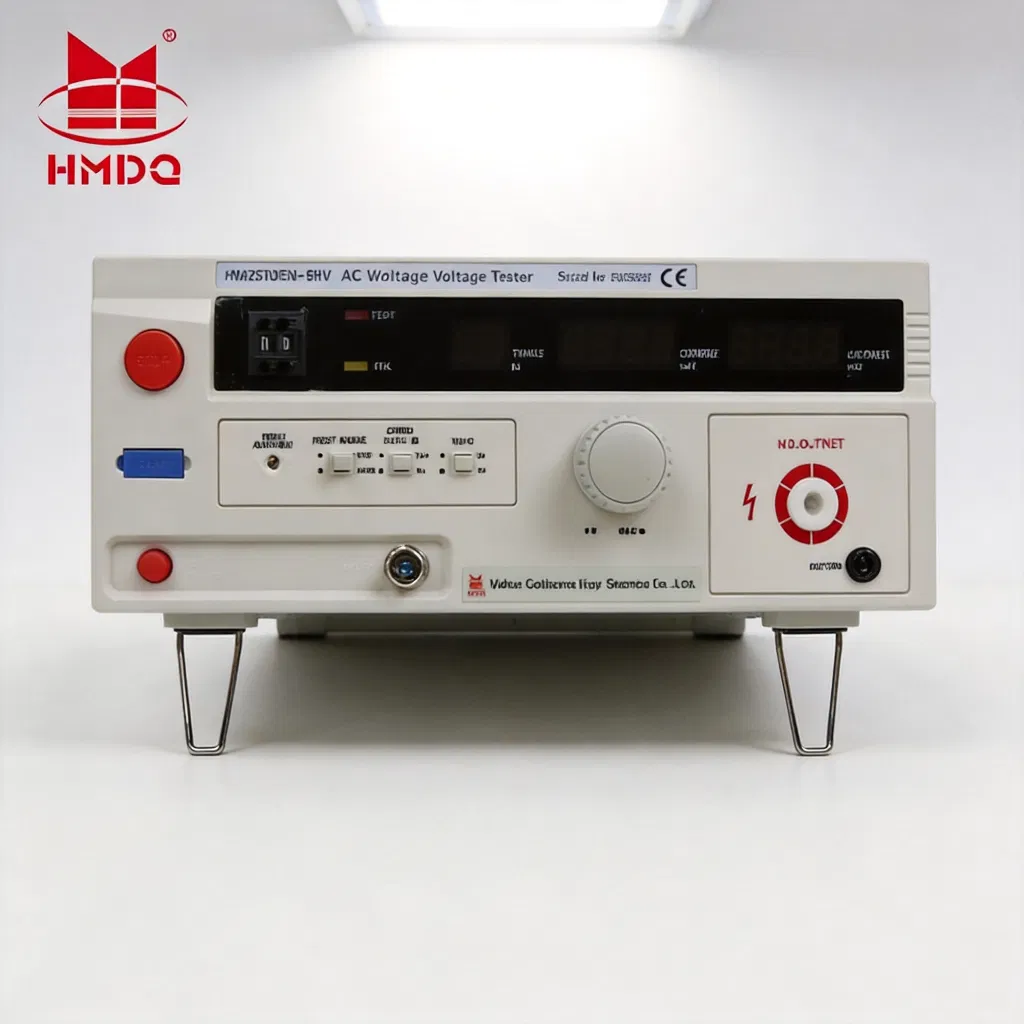

Product Showcase & Details
Frequently Asked Questions (FAQ)
What are the primary applications of the AC Withstand Voltage Tester?
The tester is designed for testing the withstand voltage safety of electronic instruments, electronic equipment, electronic components, electrical devices, bakelite appliances, rubber, high voltage cables, motors, and household appliances.
What is the voltage testing range of the HM2670 model?
The HM2670 features an AC testing voltage range adjustable from 0.5kV to 5kV with a high output voltage control accuracy of ±5%.
How precise is the leakage current setting on this equipment?
The leakage current is fully adjustable between AC 0.2mA and 20mA. It operates with a setting accuracy threshold within ±5%.
What environmental conditions are required for optimal operation?
It should be operated at temperatures between 0ºC and 40ºC with a relative humidity of ≤75% RH. The environment must be well-ventilated, clean (free of large amounts of dust and corrosive gases), and isolated from strong electromagnetic interference.
What is the timing setup capability of this withstand voltage tester?
The unit provides a flexible timer ranging from 1 to 99 seconds (±5% accuracy), and it supports manual continuous testing (infinity mode) to suit various standardized test protocols.
