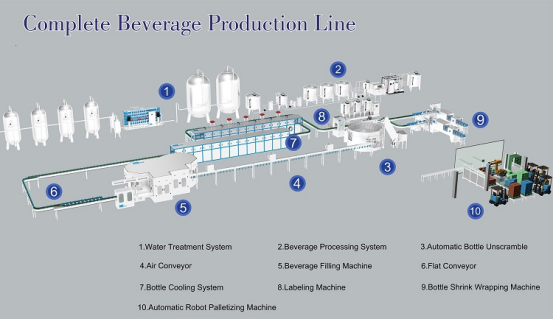

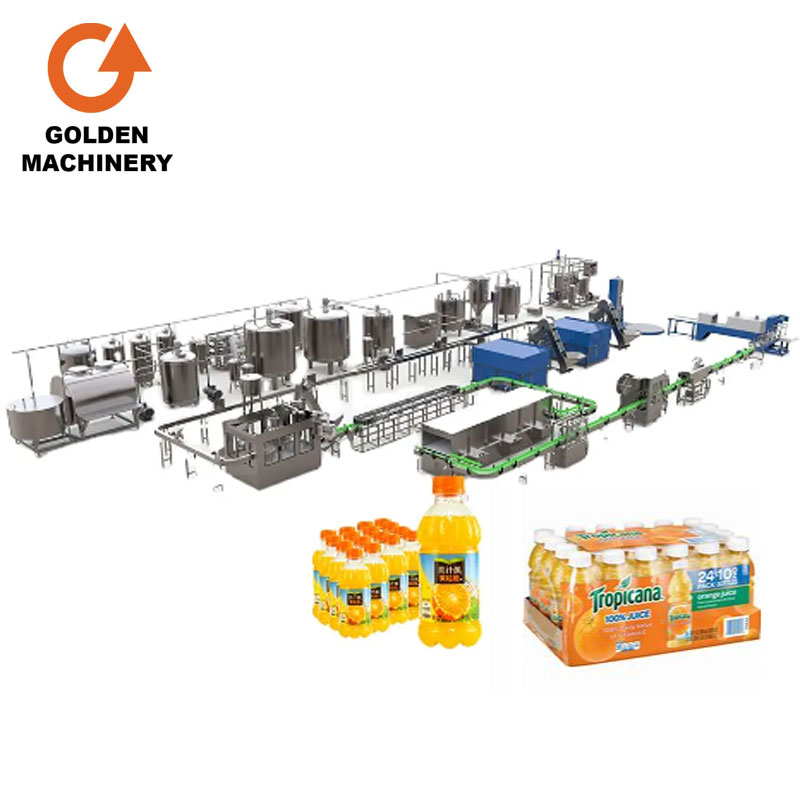

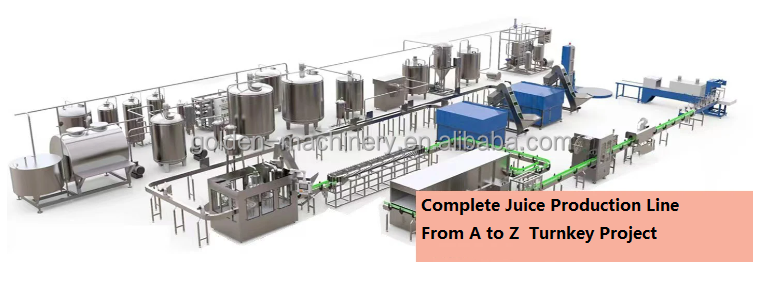

We offer a complete and advanced bottled juice production line solution, covering every stage from raw material processing to final product packaging. This production line incorporates internationally leading automation technology and hygienic design, ensuring efficient, clean, and stable production processes. It fully meets the global demand for high-quality juice products. Whether you are a small-scale juice manufacturer or a large beverage enterprise, we can provide customized solutions tailored to your needs.

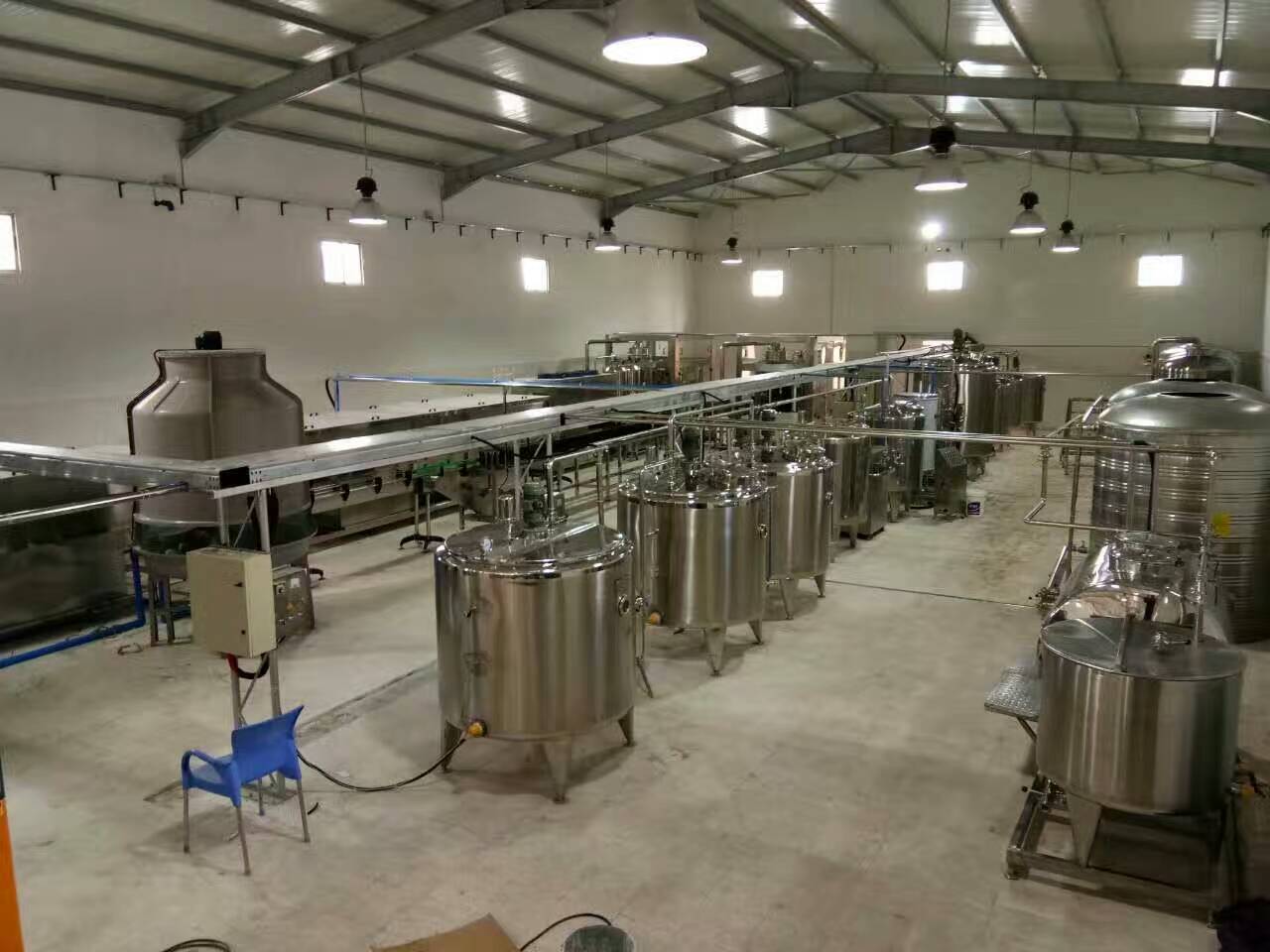

The blending system is the first step in juice production, responsible for precisely mixing raw materials such as concentrated juice, purified water, sugar, and other additives. This ensures consistency in taste, concentration, and nutritional content for every batch of product.
This system utilizes high-precision proportioning technology to ensure product taste consistency and stability. Equipped with CIP (Clean-In-Place) functionality, it facilitates easy and thorough cleaning, fully complying with international hygiene standards such as ISO 22000 and HACCP.

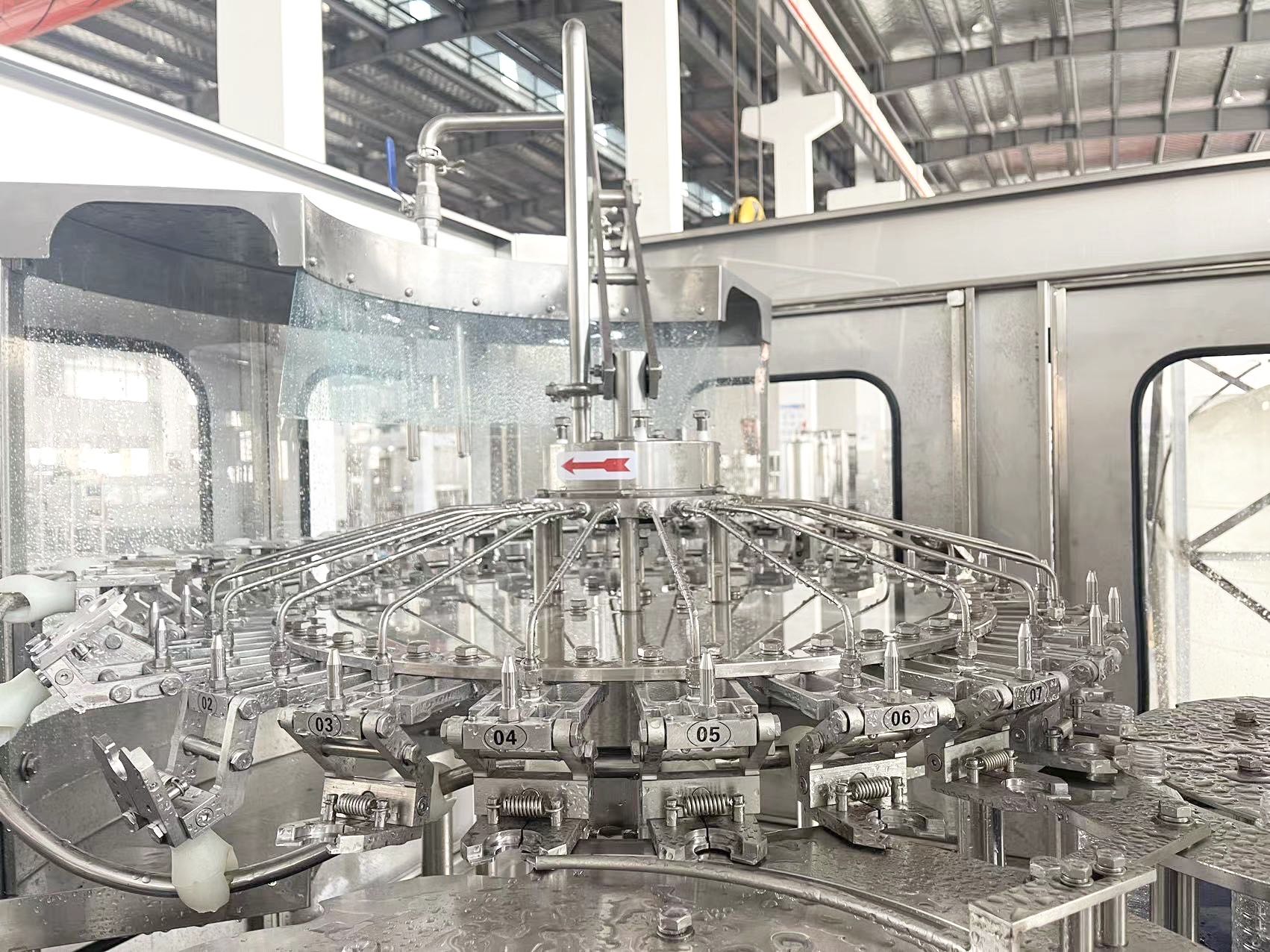

Function: Washing bottle inside and outside dust.

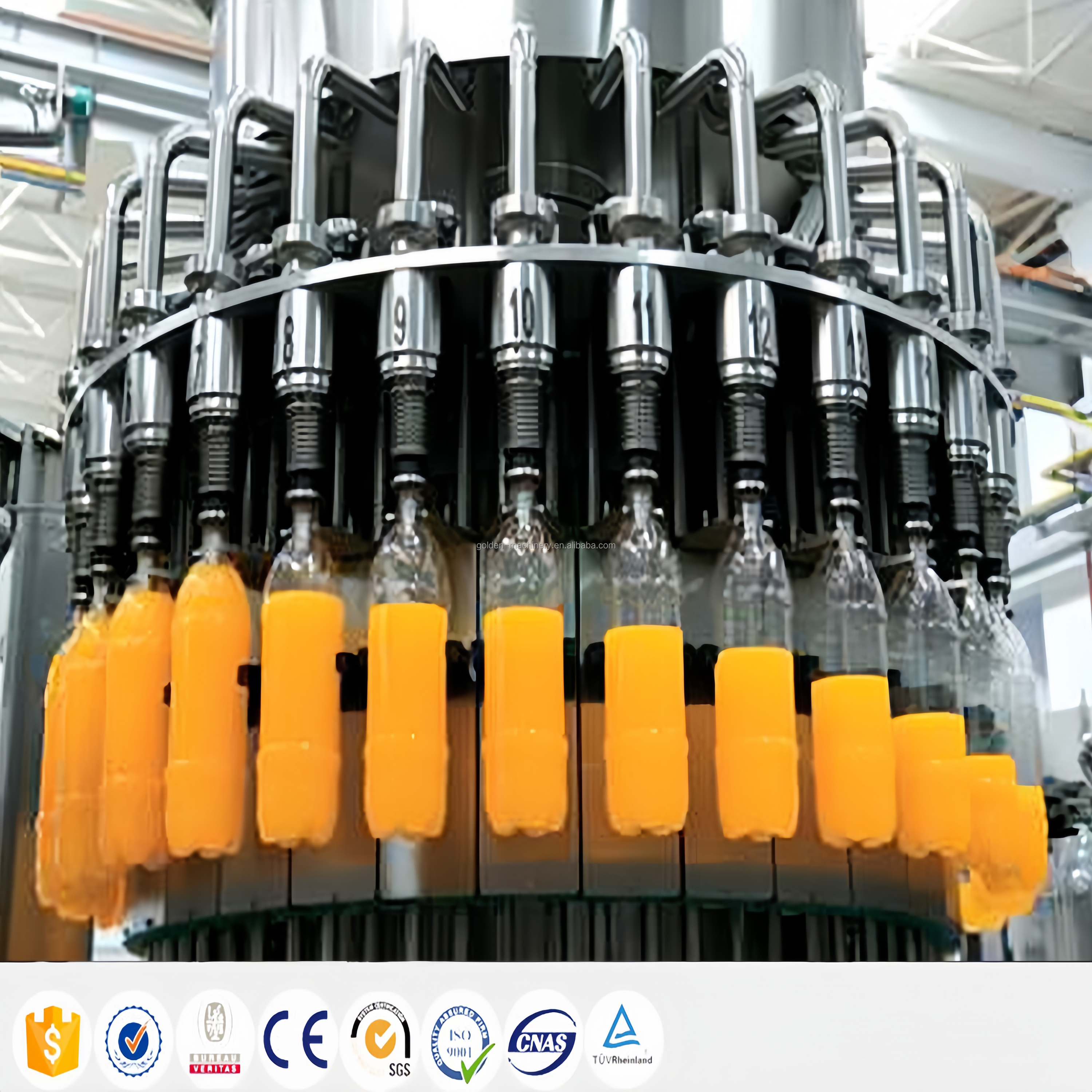

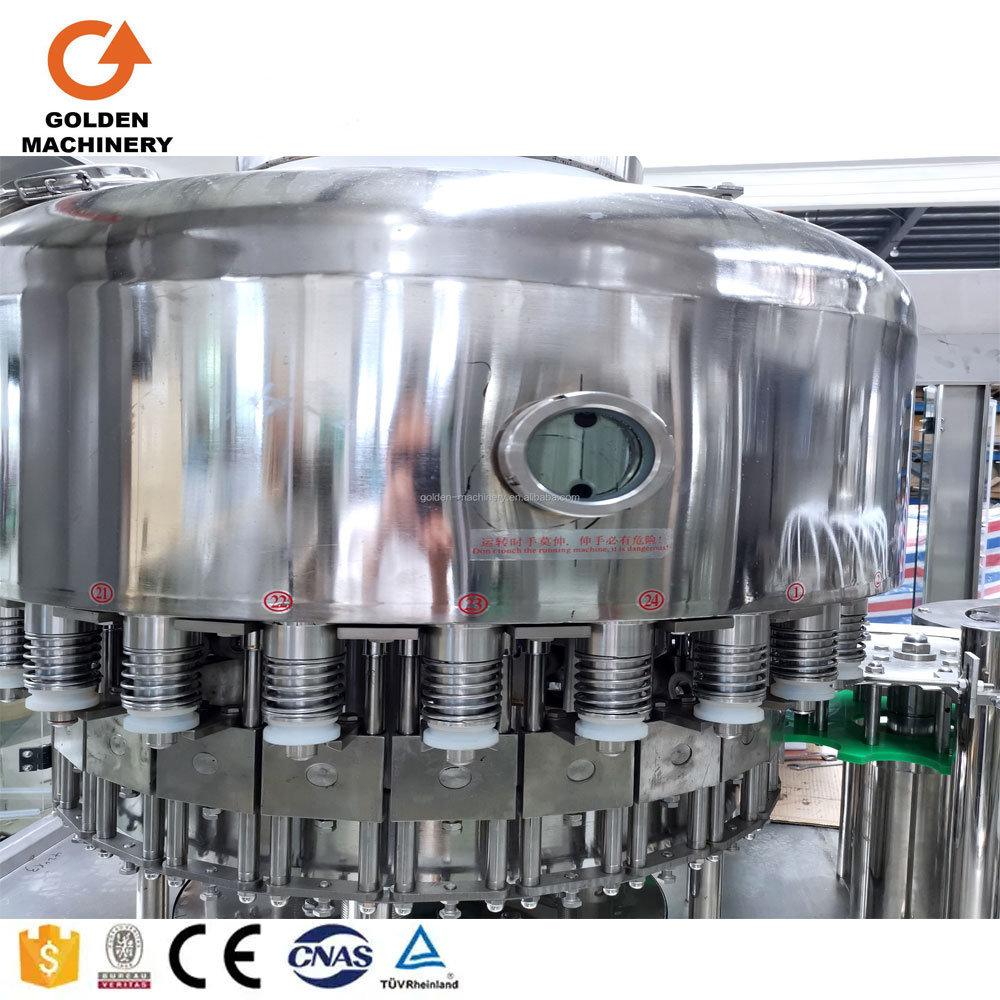

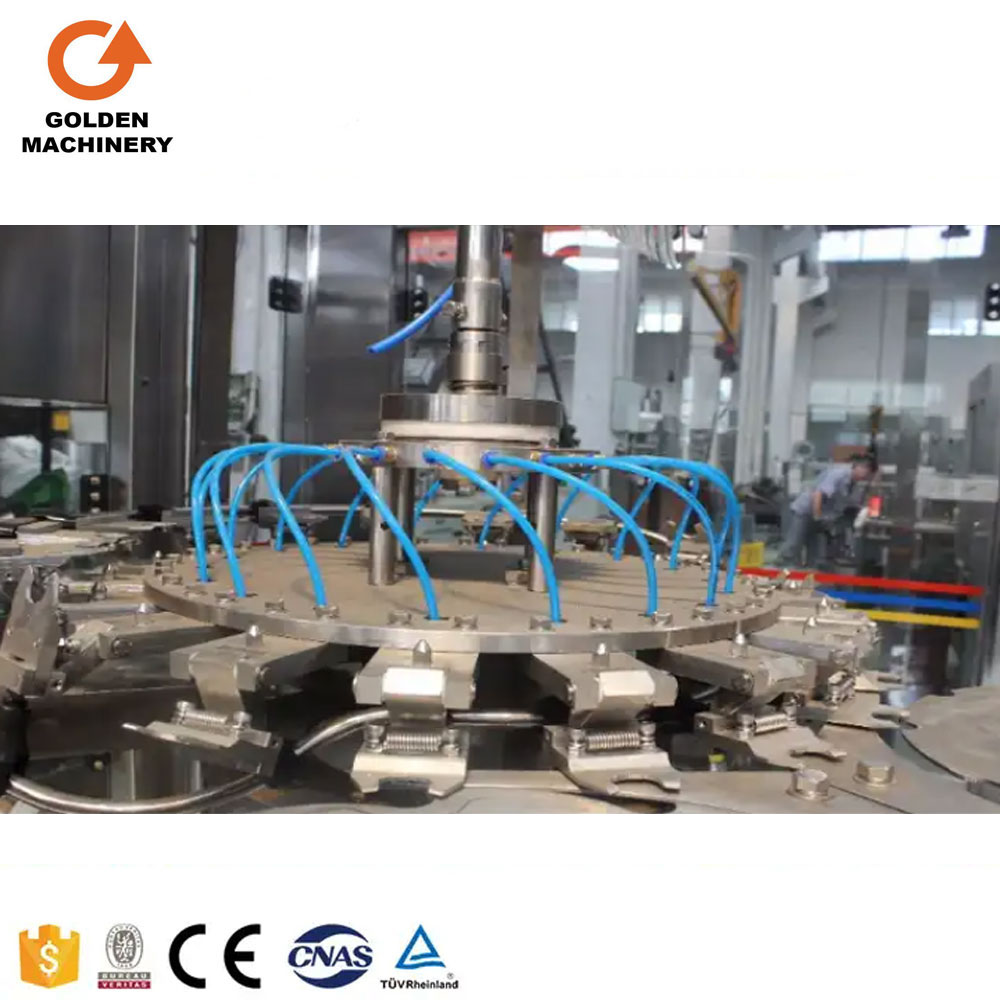

Function: Filling liquid into bottle.

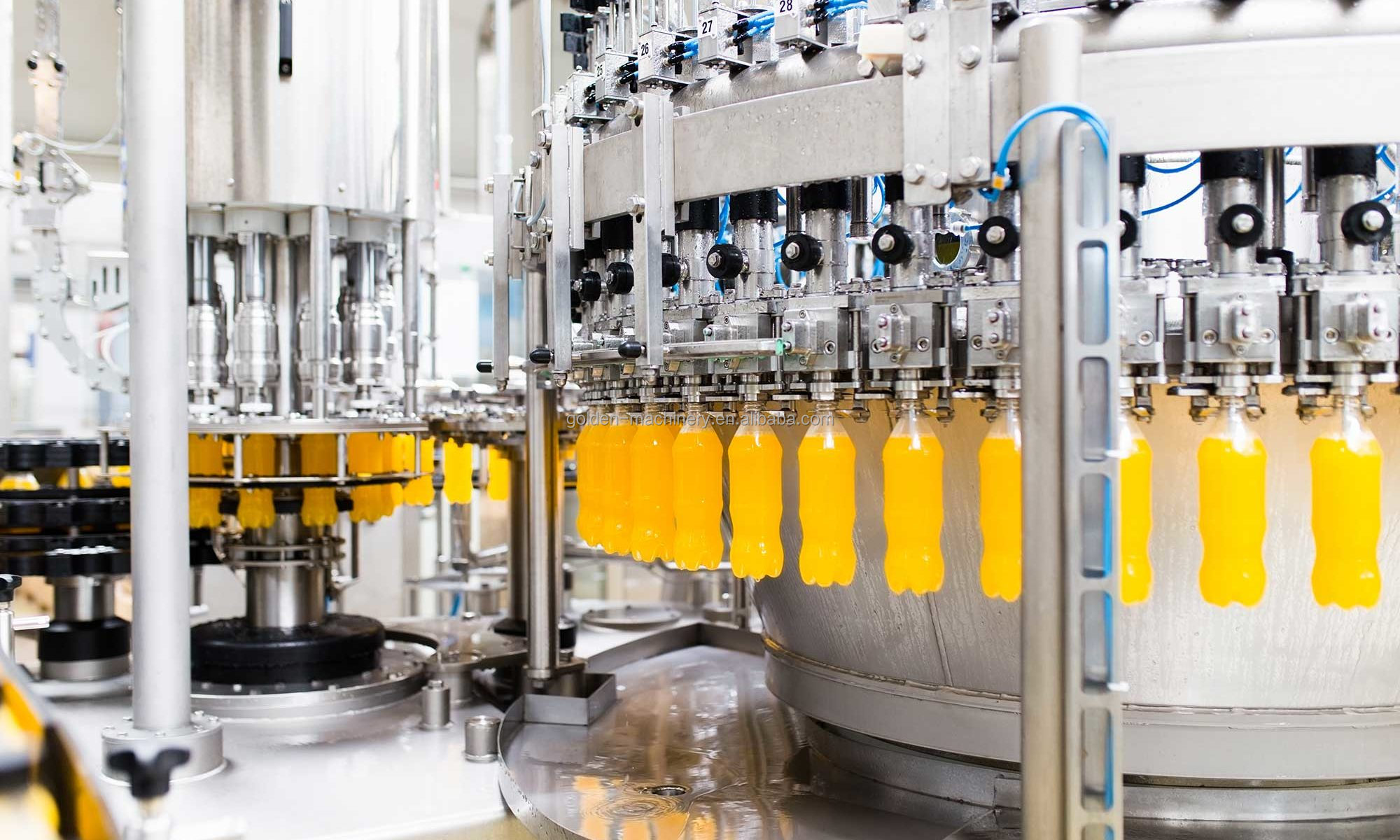

Function: Put caps on bottles.
| Model | RCGF14-12-5 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 | RCGF60-60-15 |
|---|---|---|---|---|---|---|
| Capacity (for 500ml) | 2000-3000BPH | 4000-5000BPH | 6000-8000BPH | 8000-10000BPH | 12000-15000BPH | 16000-18000BPH |
| Bottle Volume | 200-2500 ML | |||||
| Bottle Diameter | Dia 50 mm-115 mm | |||||
| Bottle Height | 160-320 mm | |||||
| Filling Type | Overflow Filling / Hot Filling | |||||

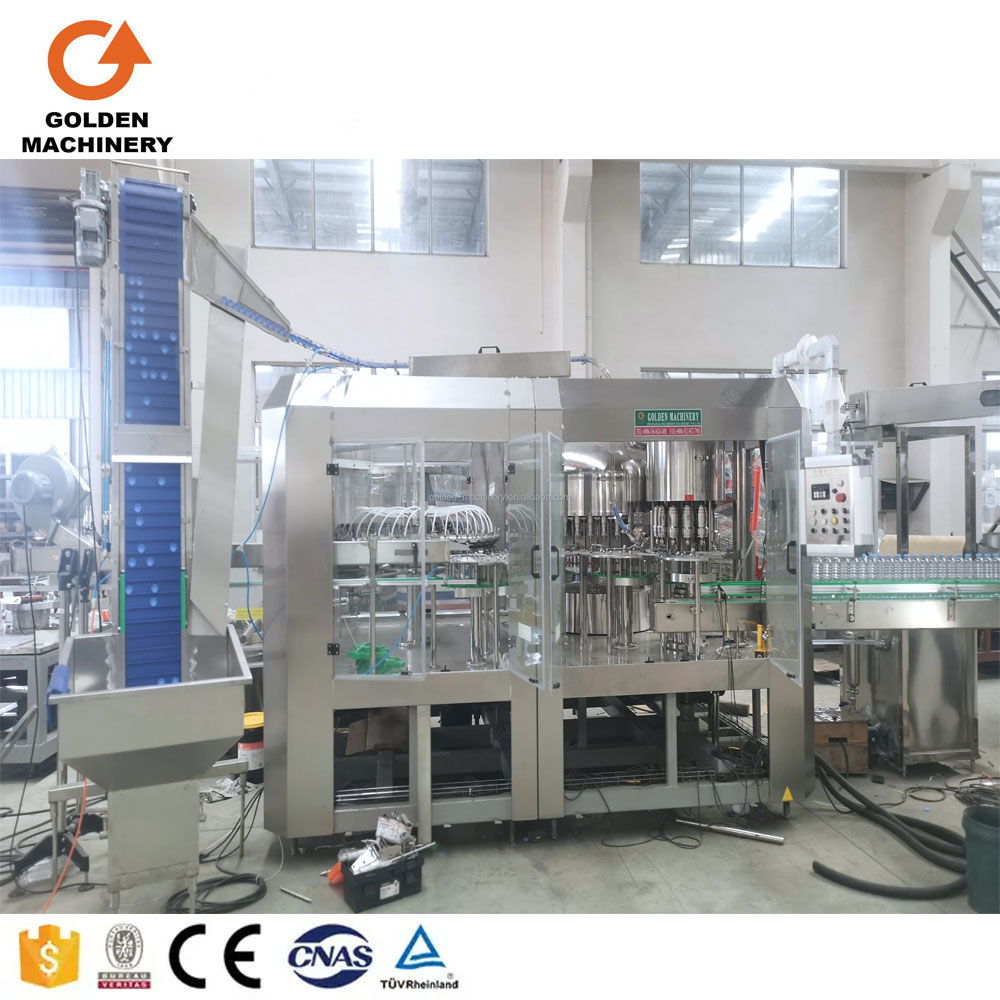

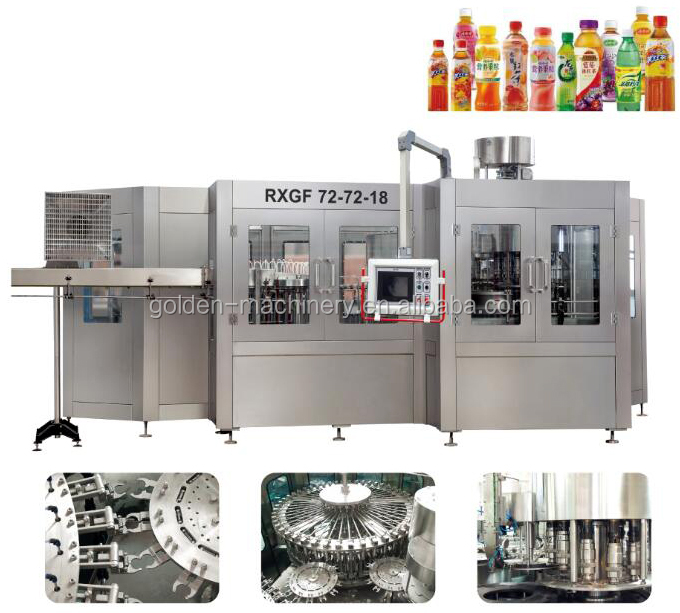

| Function | Rinsing-Filling-Capping 3-in-1 Triblock Machine | |||||
| Rinsing Pressure | >0.06Mpa <0.2Mpa | |||||
| Application | Juice / Syrup Beverage / Tea Drinks | |||||
| Machine Power | 1.5KW | 2.2KW | 3.5KW | 4.5KW | 5.2KW | 6.2KW |
| Machine Size(M) | 2.3*1.9*2.3 | 2.5*1.9*2.5 | 2.8*2.15*2.5 | 3.1*2.5*2.5 | 3.8*2.8*2.5 | 4.5*3.3*2.6 |
| Weight(KG) | 3500 | 5200 | 7000 | 9500 | 10500 | 12000 |

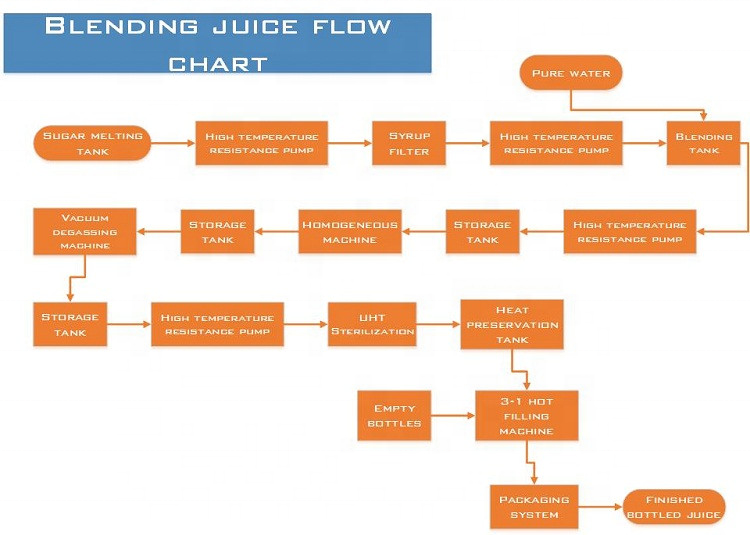

According to the product's formula requirements, the extracted juice is mixed with other ingredients such as sugar and water. Automated mixing equipment ensures accurate proportions of various ingredients while avoiding errors from manual operation. After mixing, the juice needs to be homogenized to break down small fruit pulp particles further and maintain a uniform, cloudy state.
The next step is sterilization. To ensure the safety and hygiene of the juice, high-temperature instantaneous sterilization technology is used to sterilize the prepared juice. After sterilization, the juice must be rapidly cooled to a suitable temperature to preserve its taste and nutritional components.

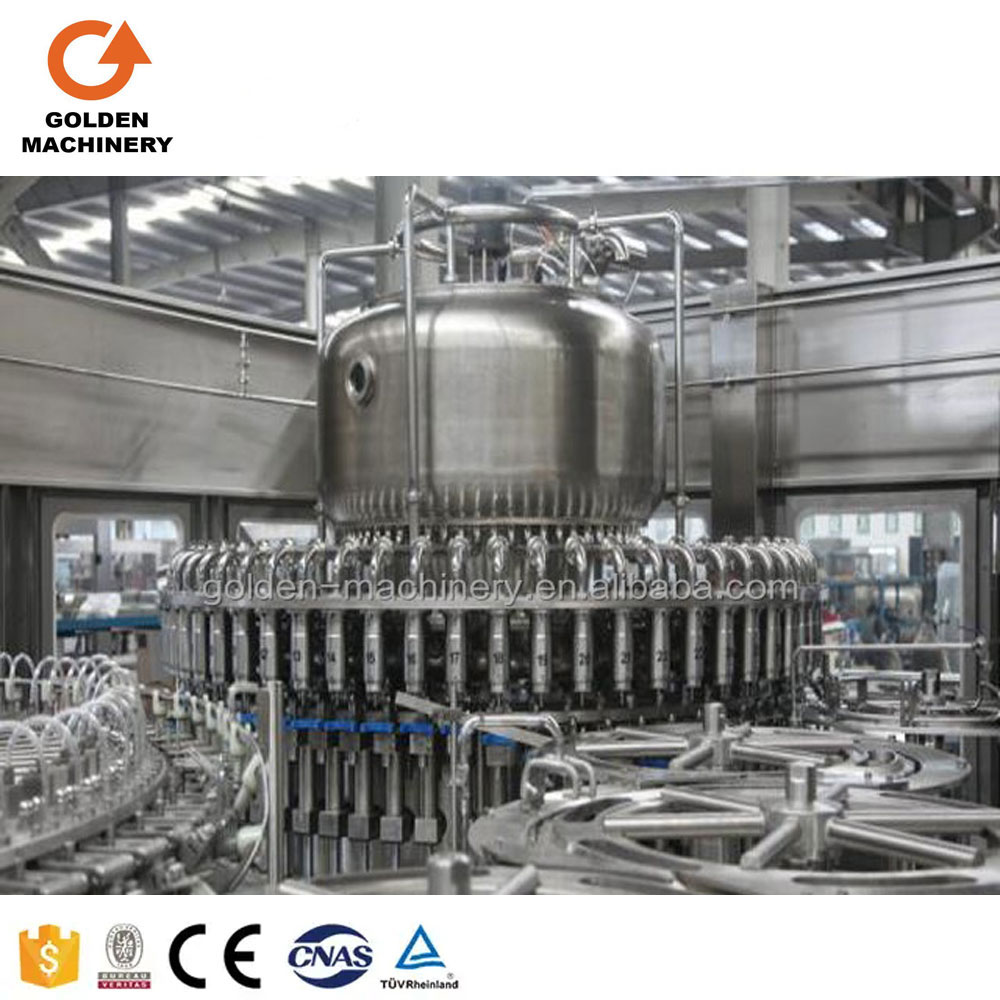

Next comes the filling process. The filling machine uses aseptic filling technology to quickly and accurately fill the sterilized juice into the pre-prepared packaging containers. Furthermore, to ensure product cleanliness, a three-in-one or four-in-one machine can be used to achieve integrated operation of disinfection, rinsing, filling, and sealing.
Finally, there's the packaging stage. After being sealed, the bottled juice enters the packaging equipment. This equipment includes case packers and palletizers, used to pack and palletize the juice for convenient transportation and sales.

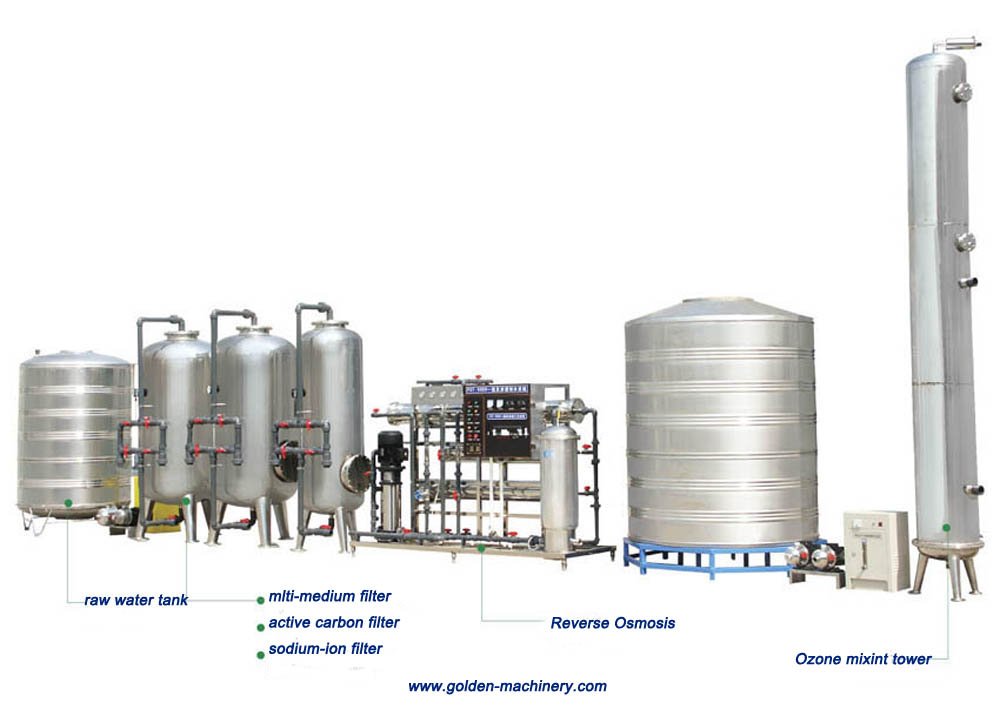

Source water tank → water pump → silica sand filter → active carbon filter → sodium ion exchanger → precision filter → reverse osmosis system → UV sterilizer → Ozone sterilizer → pure water tank
Industrial water filtration processes can be divided into several stages: pre-treatment, main treatment, post-treatment, and reuse or discharge.

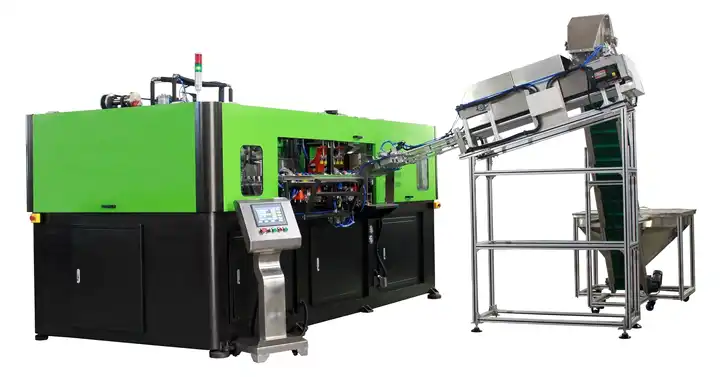

Automatic blowing machine adopts our most advanced blowing technologies. This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, and pharmaceutical industries.

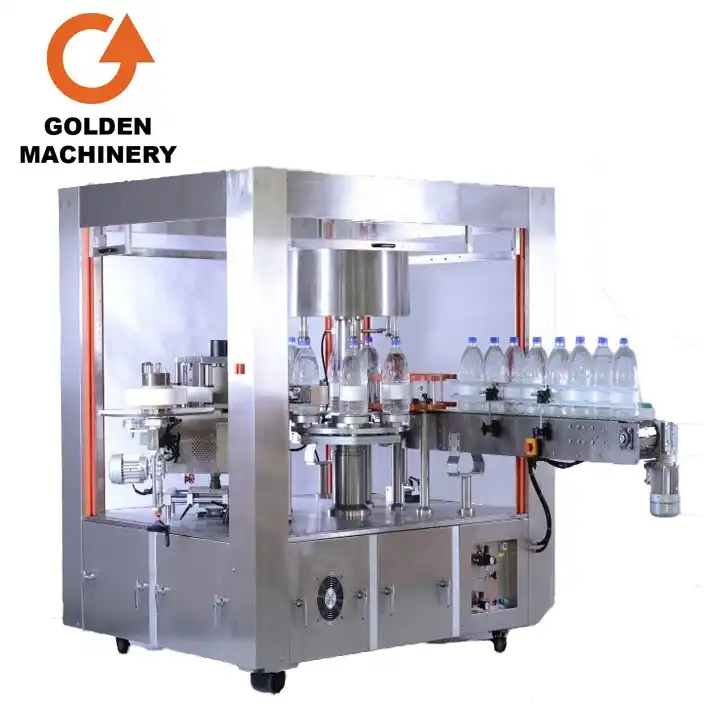

Application: OPP Hot melting labeling machine featuring a Stainless Steel Main Machine Frame and famous brand electrical components.
The primary advantages of OPP labeling machines stem from their cost-effectiveness and production efficiency. Material costs decrease because OPP labels are cheaper, reducing raw material expenses. Hot melt adhesive usage is reduced by approximately 50%, further lowering costs. Automated workflows double output, with standard machines exceeding 16,000 bottles per hour.

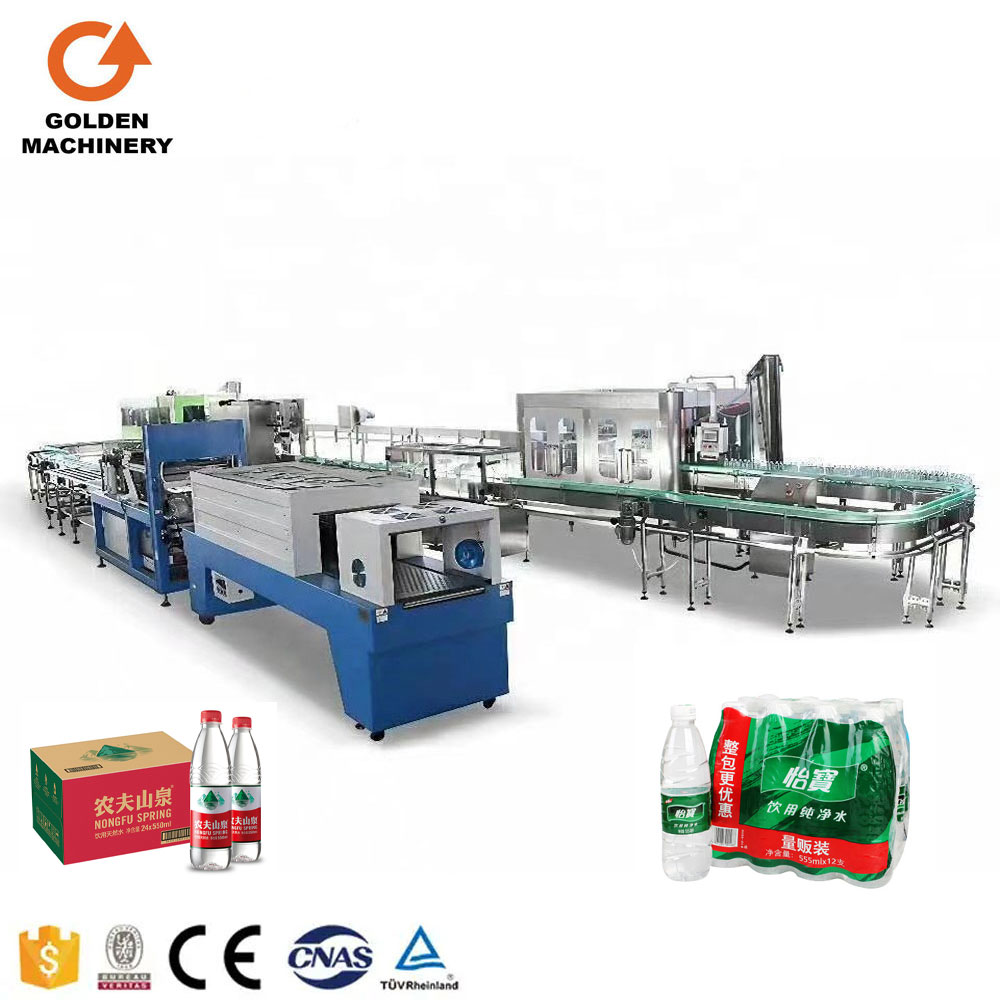

Shrink wrapping machine is suitable for wrapping and packaging of such products as pop-top cans, mineral water, bottled beer, drinks, etc. without bottom-tray (or with bottom-tray). Working with a PE shrink tunnel to pack the goods perfectly. The whole production process of the shrink wrapping machine adopts advanced technology. Its main components are imported from internationally renowned brands to guarantee stable and long-term performance.

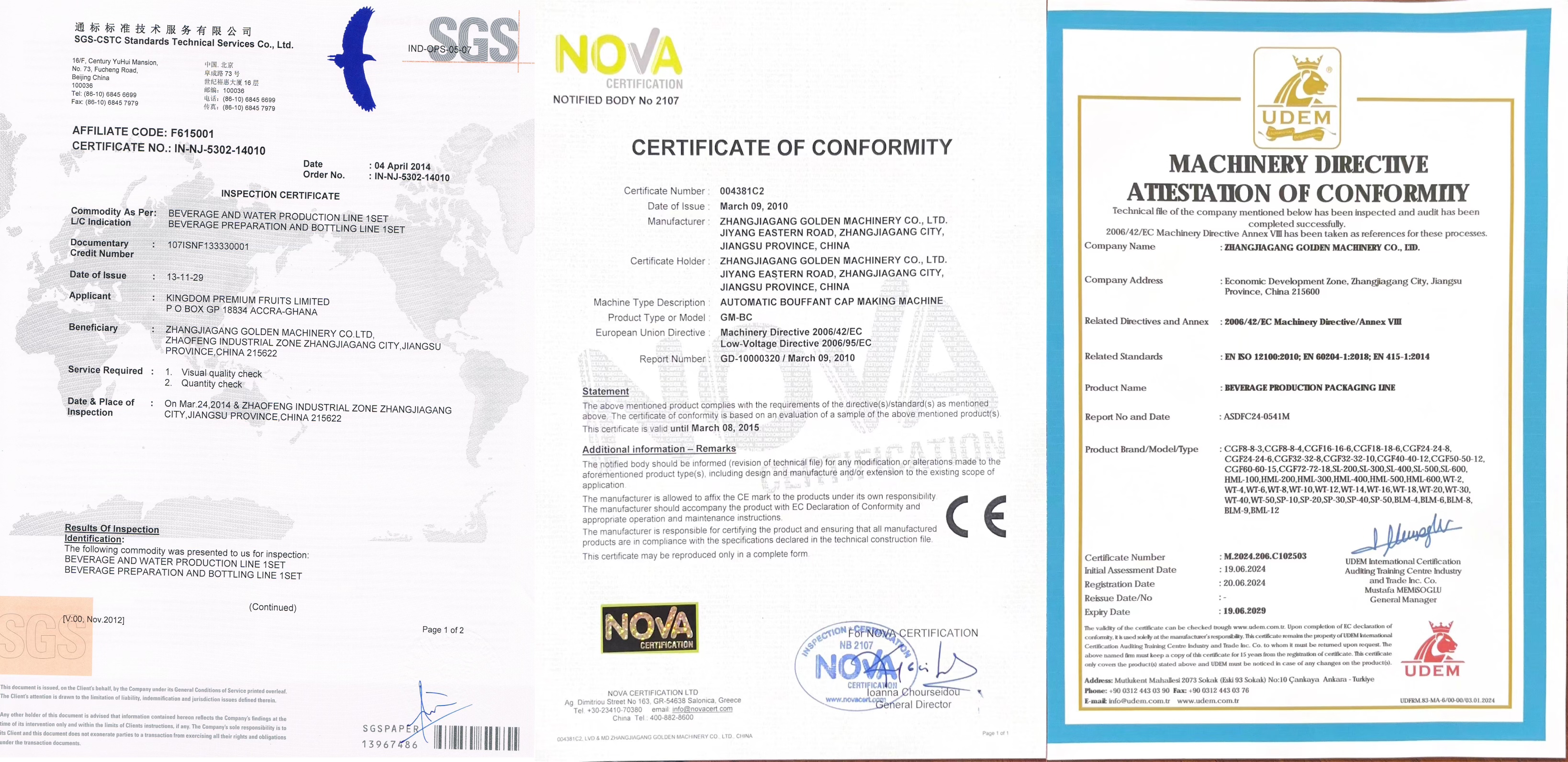

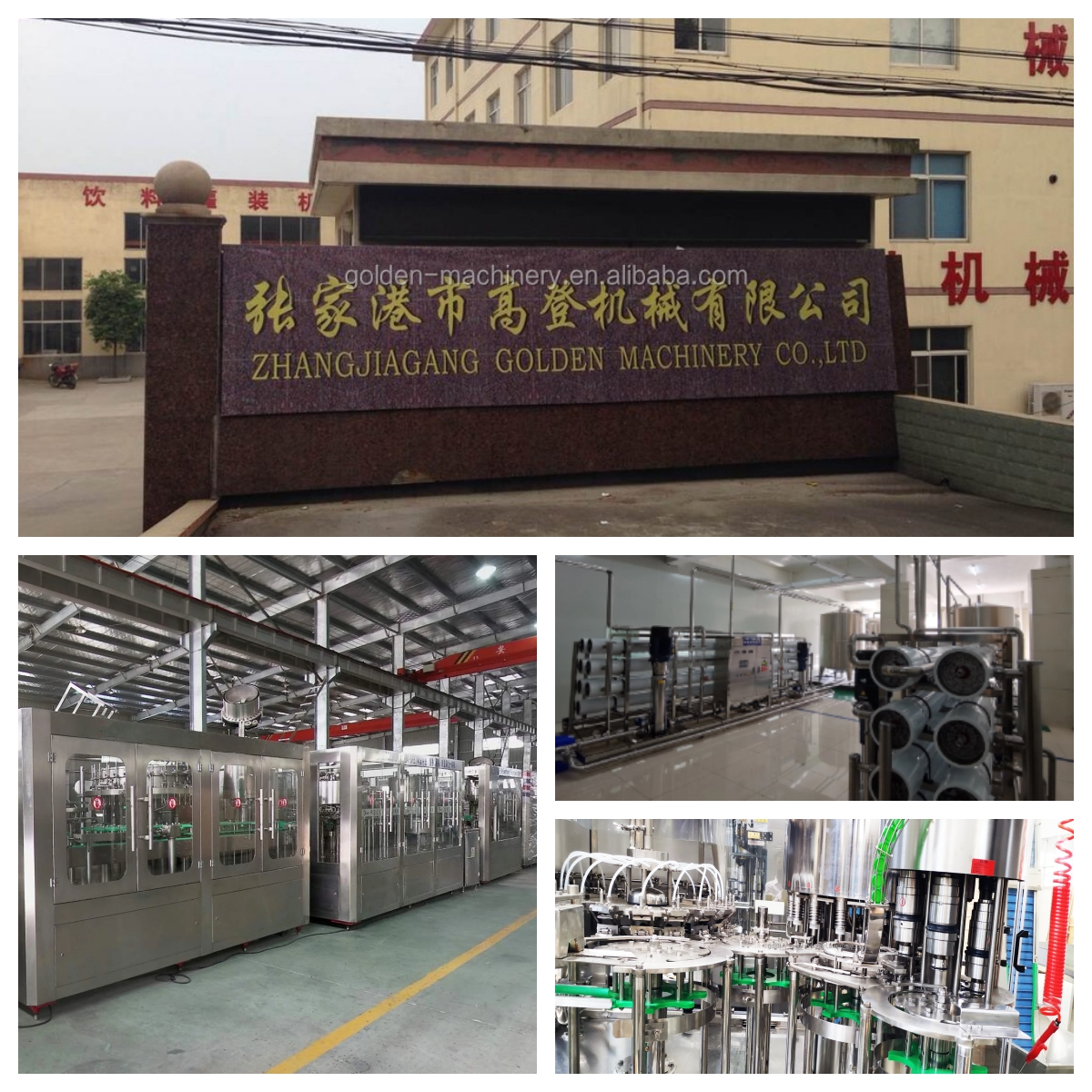

Our group operates a 20,000m² international standard workshop. We possess excellent experience in beverage packaging with over 20 years of industry expertise, providing world-class, automated production solutions for the global beverage industry. Empowering your production with global standards, backed by CE Certification.
