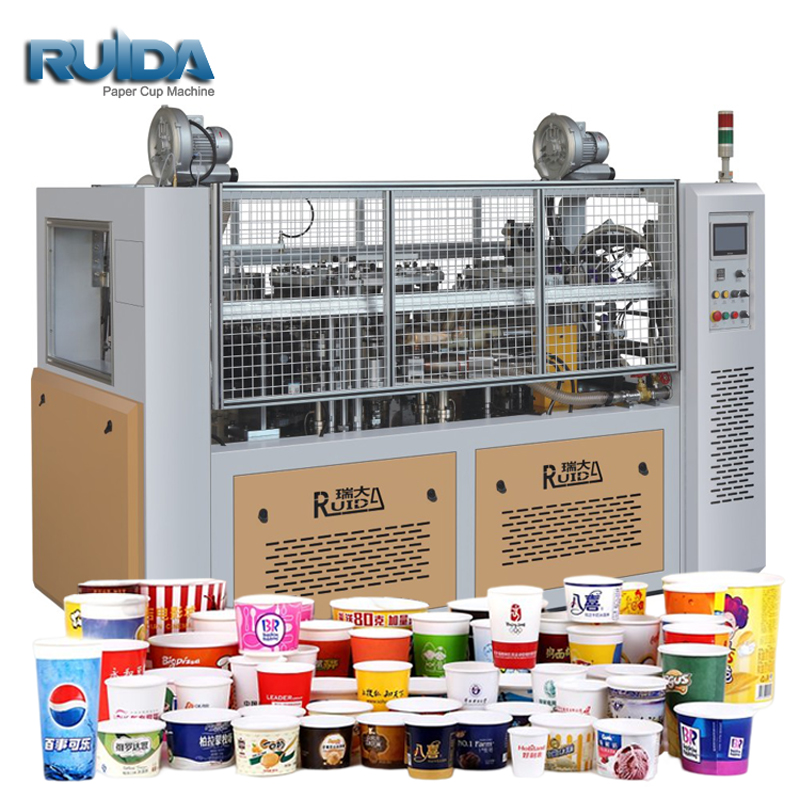

24-46 Oz Free Sample Disposable Paper Tableware Forming Machine Fully Automatic High Speed Paper Bowl Making Machine
24-46 Oz Free Sample Disposable Paper Tableware Forming Machine Fully Automatic High Speed Paper Bowl Making Machine
24-46 Oz Free Sample Disposable Paper Tableware Forming Machine Fully Automatic High Speed Paper Bowl Making Machine
24-46 Oz Free Sample Disposable Paper Tableware Forming Machine Fully Automatic High Speed Paper Bowl Making Machine
24-46 Oz Free Sample Disposable Paper Tableware Forming Machine Fully Automatic High Speed Paper Bowl Making Machine
1 / 5
24-46 Oz Free Sample Disposable Paper Tableware Forming Machine Fully Automatic High Speed Paper Bowl Making Machine
24-46 Oz Free Sample Disposable Paper Tableware Forming Machine Fully Automatic High Speed Paper Bowl Making Machine
24-46 Oz Free Sample Disposable Paper Tableware Forming Machine Fully Automatic High Speed Paper Bowl Making Machine
24-46 Oz Free Sample Disposable Paper Tableware Forming Machine Fully Automatic High Speed Paper Bowl Making Machine
24-46 Oz Free Sample Disposable Paper Tableware Forming Machine Fully Automatic High Speed Paper Bowl Making Machine

24-46 Oz Free Sample Disposable Paper Tableware Forming Machine Fully Automatic High Speed Paper Bowl Making Machine

Send Inquiry

Product Description

Paper Cup Machinery
Products Description

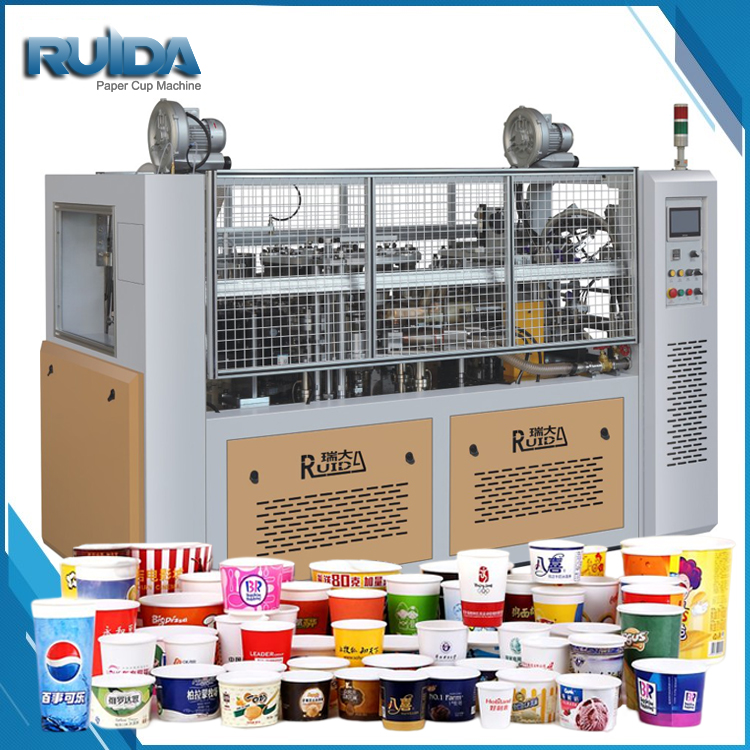

Disposable Paper Tableware Forming Machine
24-46 oz Free Sample Disposable Paper Tableware Forming Machine Fully Automatic High Speed Paper Bowl Making Machine

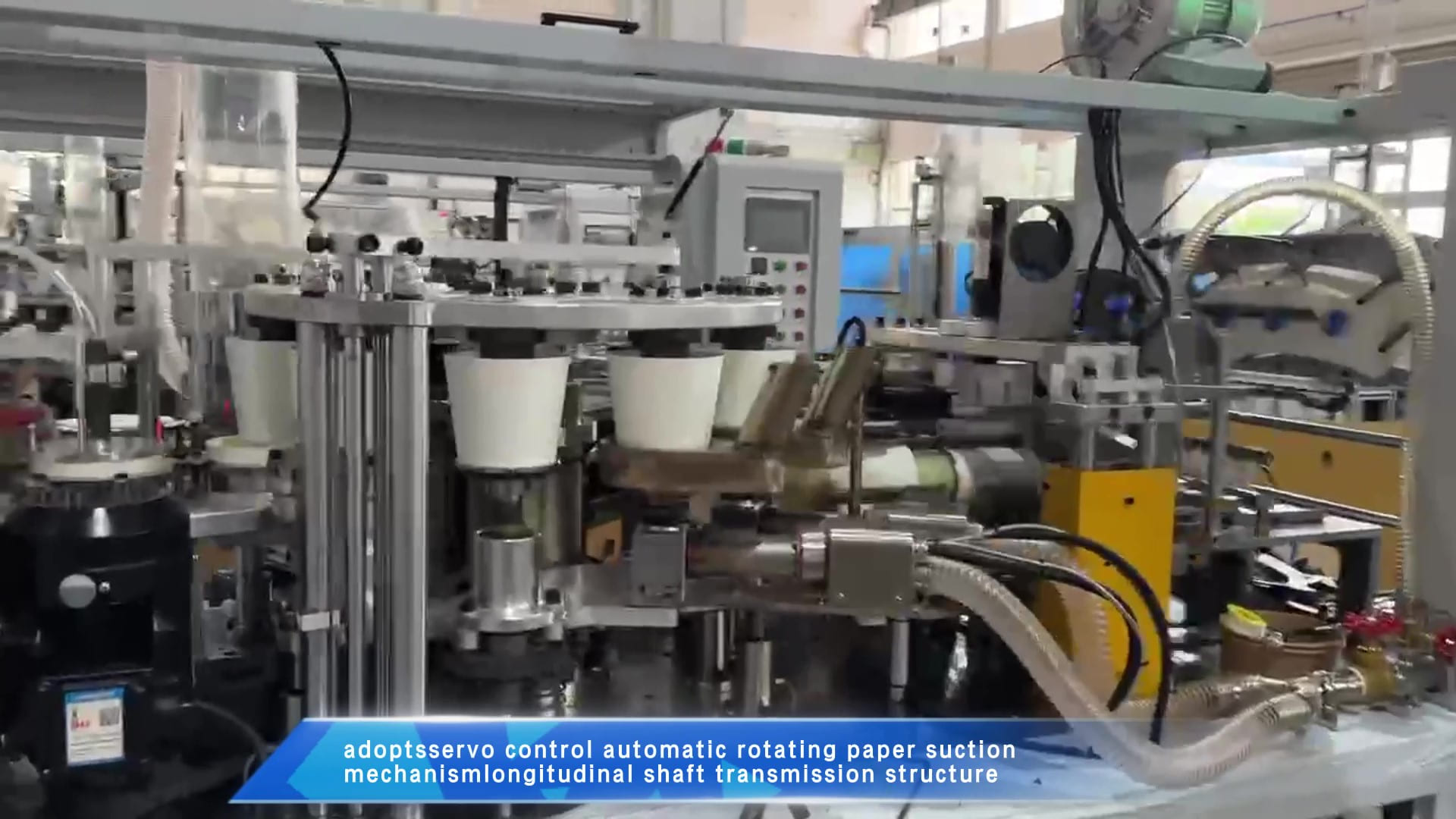

RD-XLF116W high-speed paper bowl forming machine adopts servo control automatic rotating paper suction mechanism, longitudinal shaft transmission structure, barrel cylinder indexing mechanism and gear transmission, with automatic spray lubrication, and double curling mechanism.
⚙️
Optional Visual Inspection System: A visual inspection system can be installed on the machine to detect stains, insects, curling mouth cracks, and wrinkles in the cup (bowl) curling mouth and internal area from above.

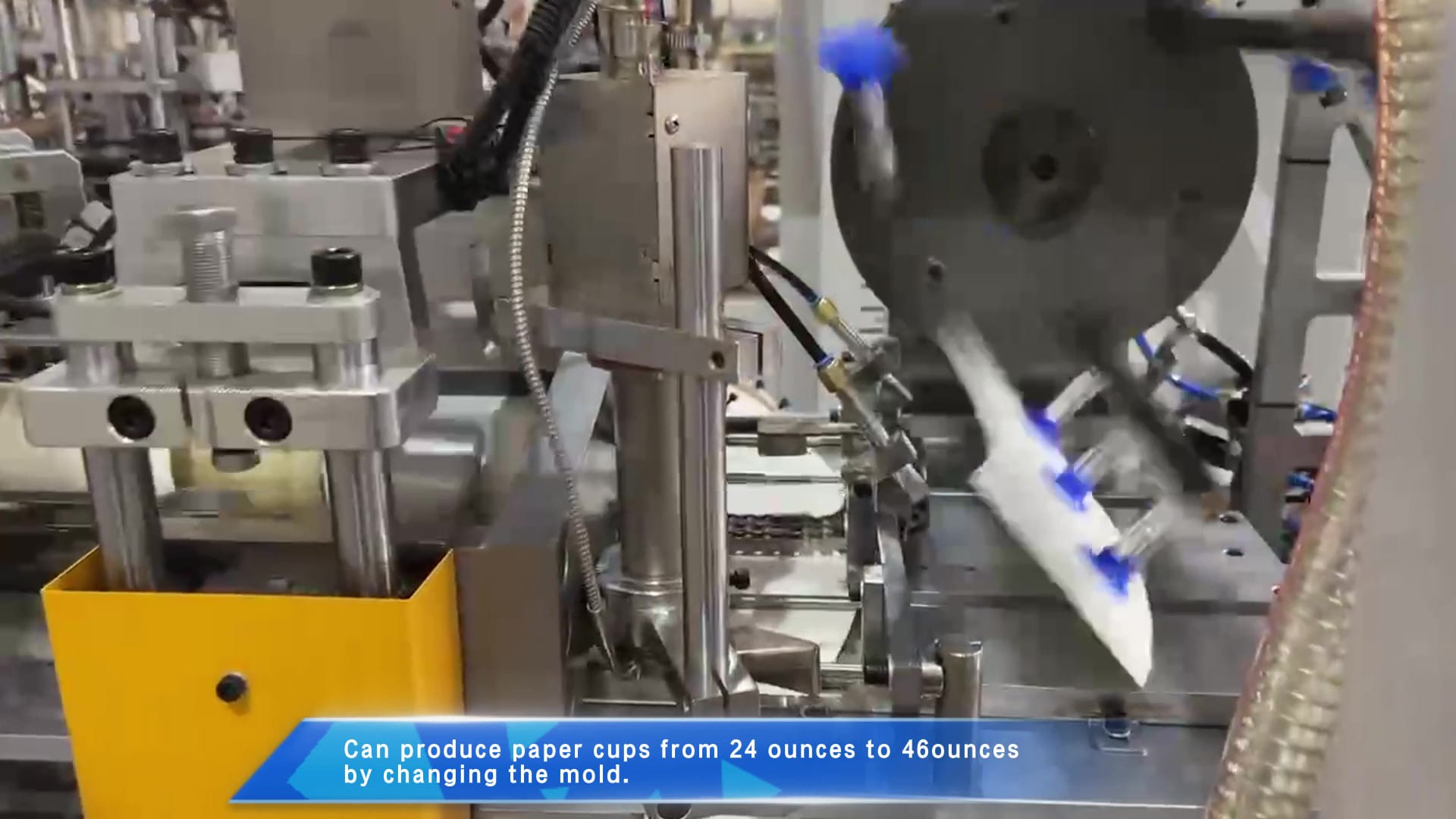

The RD-XLF116W can produce paper cups and bowls from 24 ounces to 46 ounces by changing the mold. It is highly applicable to the production of market bowls, instant noodles bowls, soup bowls, and other similar products.
Model RD-XLF116W Paper Bowl Forming Machine
Cups Specifications 24-46oz Paper Bowl
Speed 100-130pcs/min
Paper Material Single or double PE Coated Paper
Paper Specifications 170-350 g/㎡
Gas Source 0.6m³/min
Total Power 380V 50HZ
General Power 15Kw
Weight 3500Kg
We are a full service manufacturing company willing to supply automatic paper cup forming machinery, flexo printing machines, die cutting machines, paper top flatten machines, and other machinery in the mechanical industry. We produce many different types of products for your selection. If you are interested in any product, please contact us for our best service.
Paper cup Paper bowl Free sample

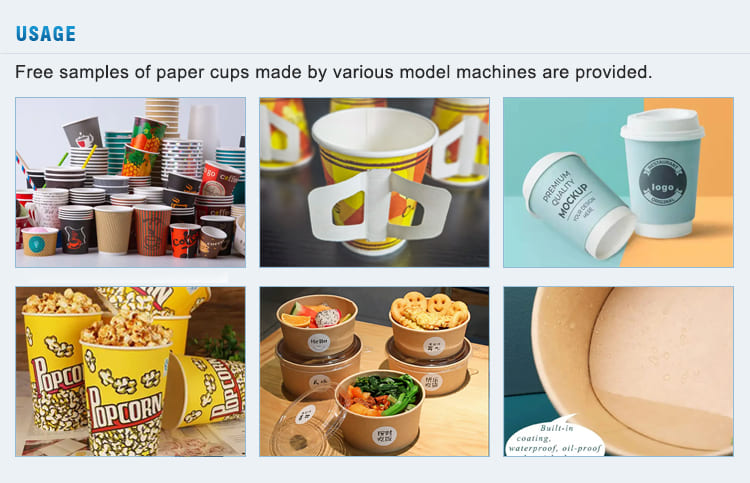

Paper Cup Bowl Sample

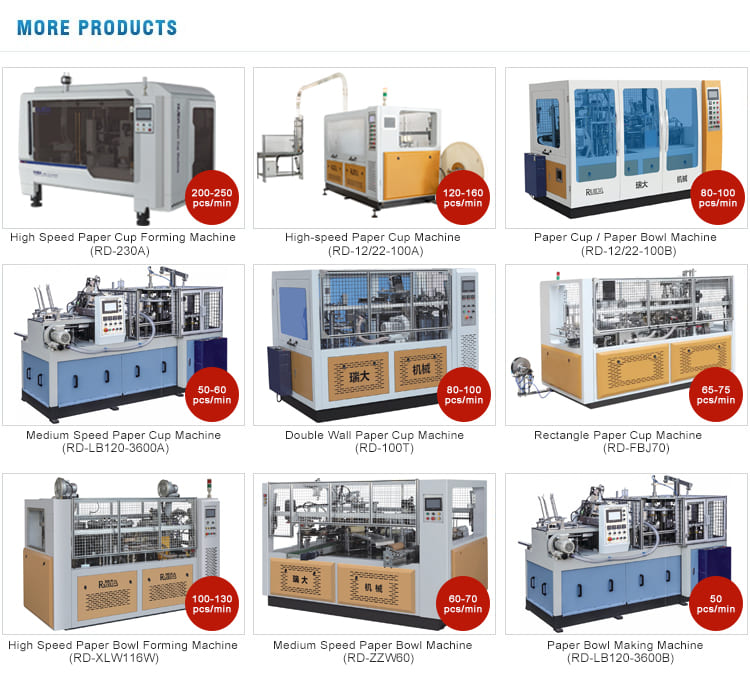

Machinery Speed Options Grid

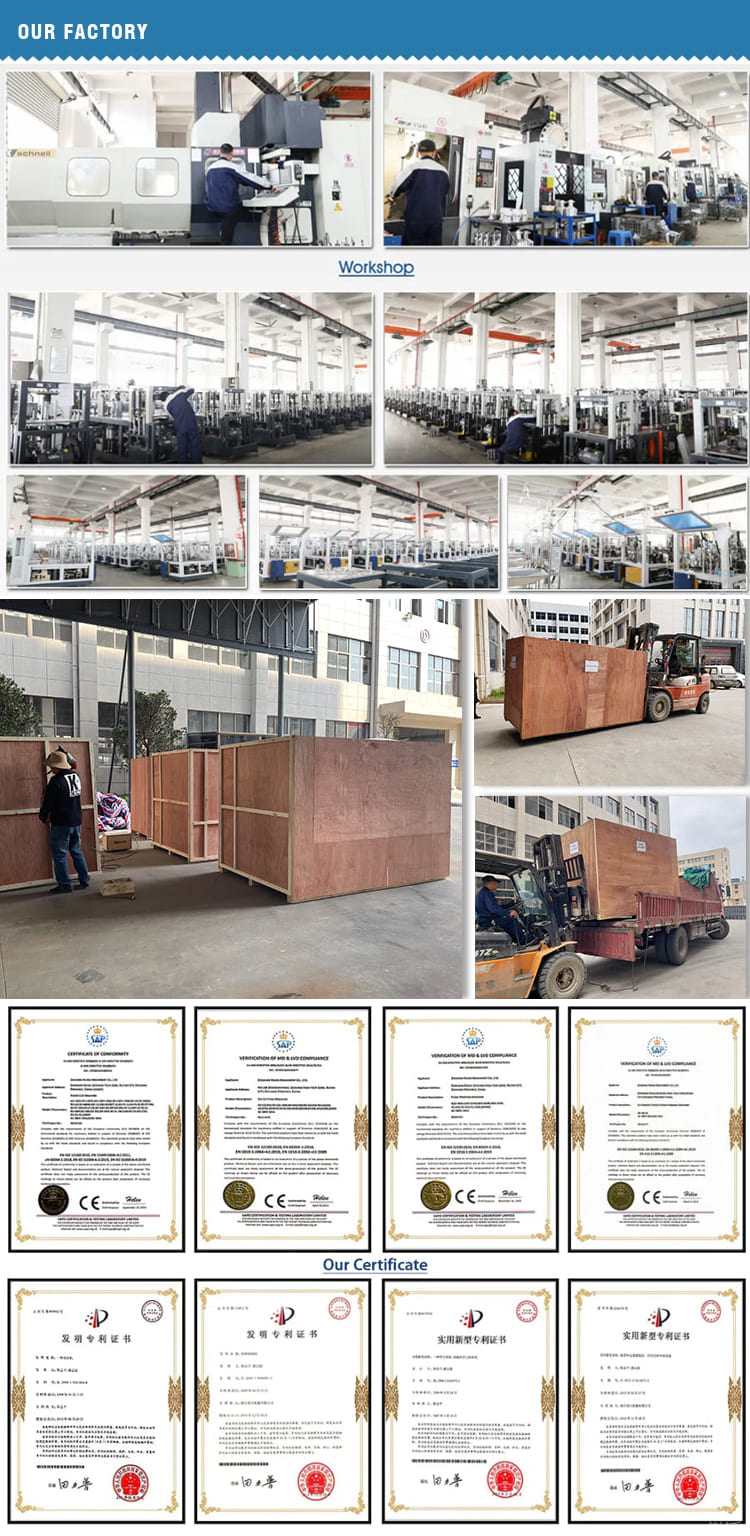

Our Factory
Manufacturing Factory Workshop
FAQ
Please feel free to send your detailed requirements and questions to us.
Q What is the production speed of the RD-XLF116W paper bowl machine?
The machine operates at a speed of 100 to 130 pieces per minute, depending on the material and bowl size.
Q What sizes of bowls can this machine produce?
It can produce disposable paper bowls ranging from 24 ounces to 46 ounces by changing the mold.
Q What raw materials are applicable for the forming process?
The machine works with single or double PE coated paper with paper weights ranging from 170 to 350 g/㎡.
Q Does this machine support automatic lubrication?
Yes, the machine features automatic spray lubrication along with a longitudinal shaft transmission and gear drive system for smooth operation.
Q Is there a quality inspection system available?
Yes, a visual inspection system can be optionally installed to detect stains, defects, cracks, and wrinkles on the bowl rim and interior.
Q What kind of power supply and gas sources are required?
The machine requires a 380V 50HZ power supply with a general power of 15Kw, and a gas source flow of 0.6m³/min.
