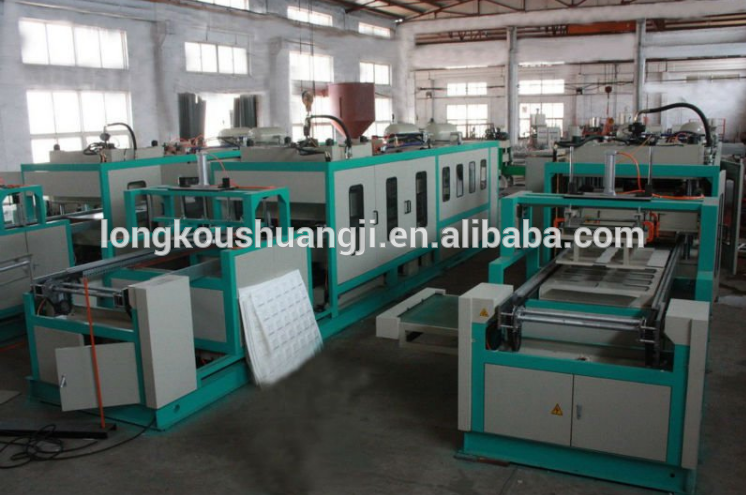

Fast food box machine mainly includes three parts:
| Model | Unit | SJ-640 | SJ-1040 | SJ-1380 |
| Max.forming area | mm | 640*1000 | 1000*1100 | 1100*1380 |
| Max.forming depth | mm | 70 | 80 | 100 |
| Production efficiency | s/mould | 3-5 | 3-5 | 3-5 |
| Forming pressure | T | 12 | 15 | 15 |
| Total power | kw | 120 | 168 | 204 |
| Heating power | kw | 70 | 108 | 142 |
| Overall size(LxWxH) | m | 10*1.6*2.6 | 12*2*2.6 | 15*3.6*2.58 |
| Total weight | T | 8 | 15 | 16 |
| Model | Unit | SJ-180+120/100 | SJ-380+220/180 |
| Screw diameter | mm | 180+120/100 | 380+220/180 |
| Motor power | kw | 22 | 90 |
| Heating power | kw | 25 | 80 |
| Capacity | kg/h | 80-130 | 450-500 |
| Cooling water tank | m | 2*4.0*0.28 | water cut |
| Granulator motor | kw | 2.2 | water cut |
Q1: What are the main components of the blister fast food box forming machine production line?

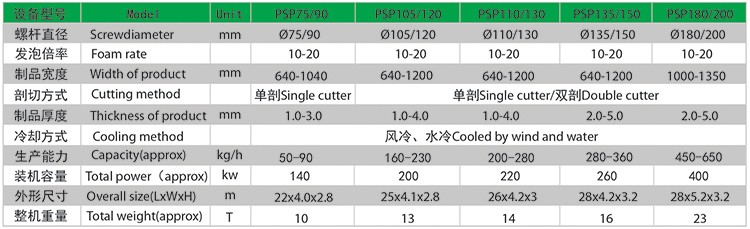

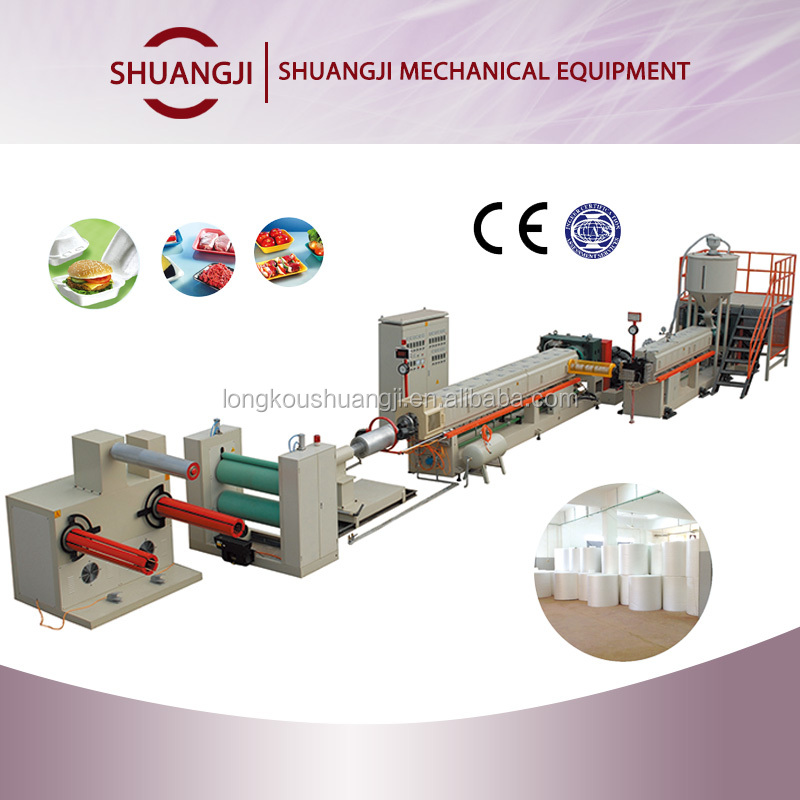

A1: The complete production line primarily consists of three main components: the PS Foam Sheet Extrusion Line, the Automatic Vacuum Forming and Cutting Machine, and the Crusher and Recycle Machine.

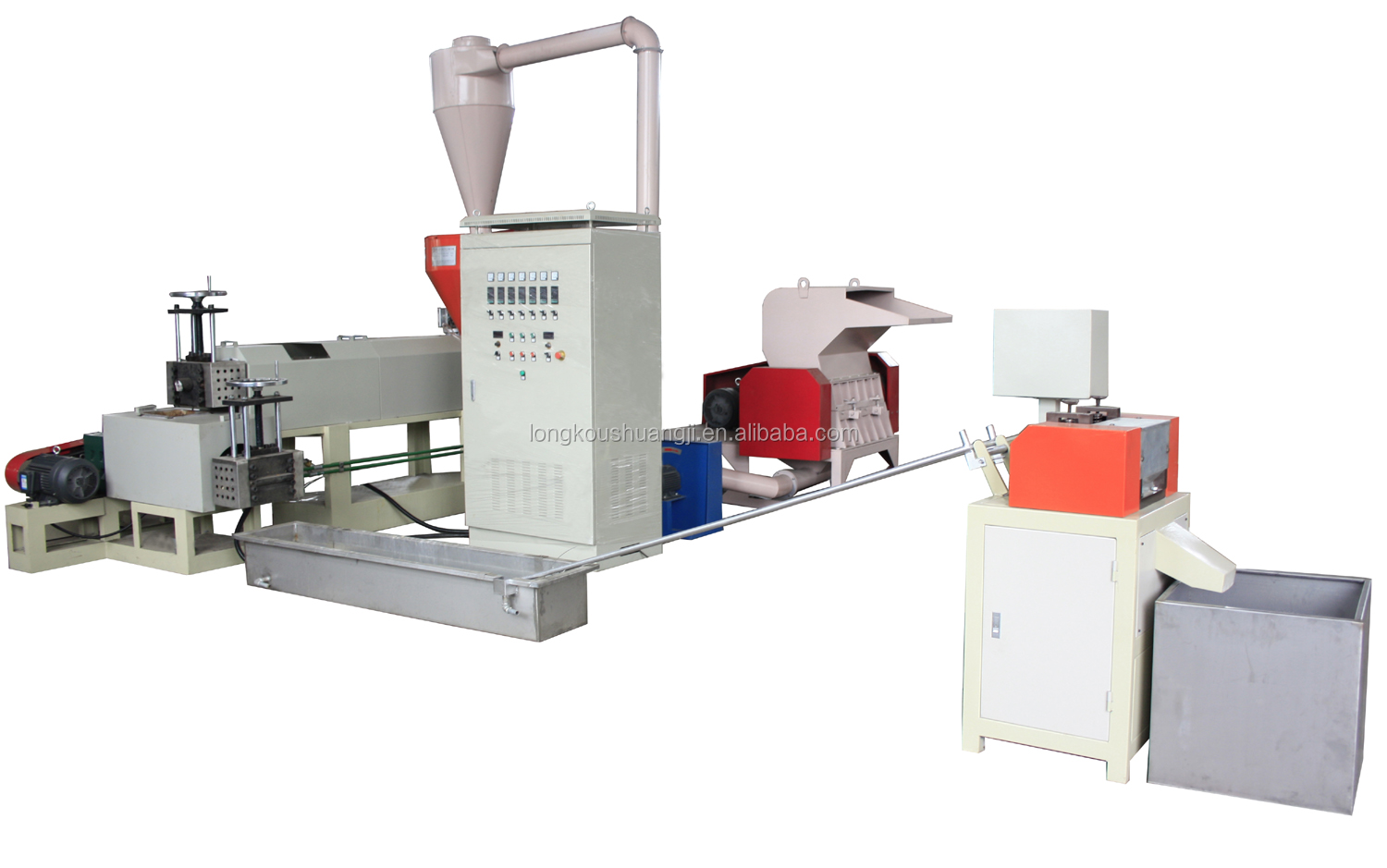

Q2: How does the recycling system contribute to the production workflow?
A2: The crusher and recycle machine processes leftover scrap material from the forming and cutting phase back into plastic granules. These granules can be mixed back with new raw material to make foam sheets, minimizing material waste.

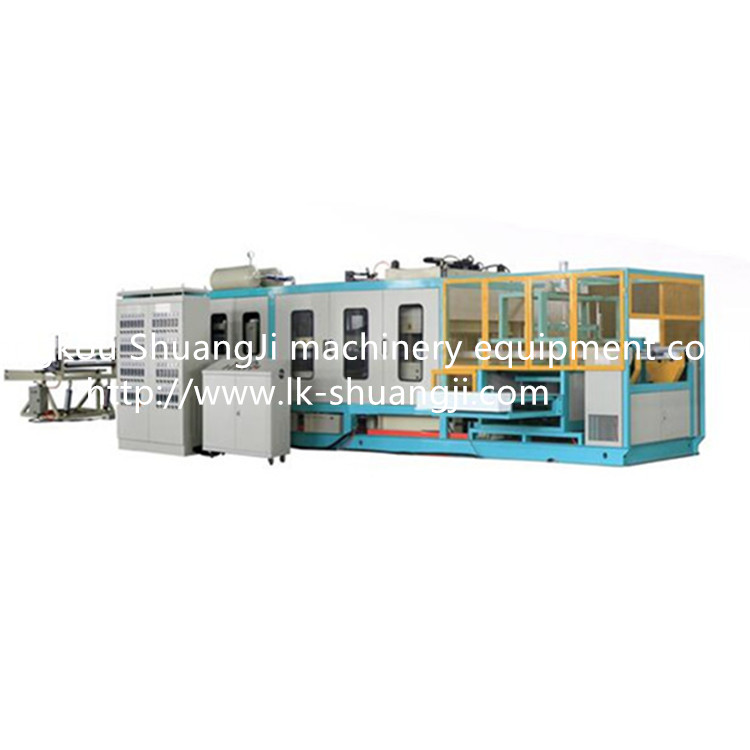

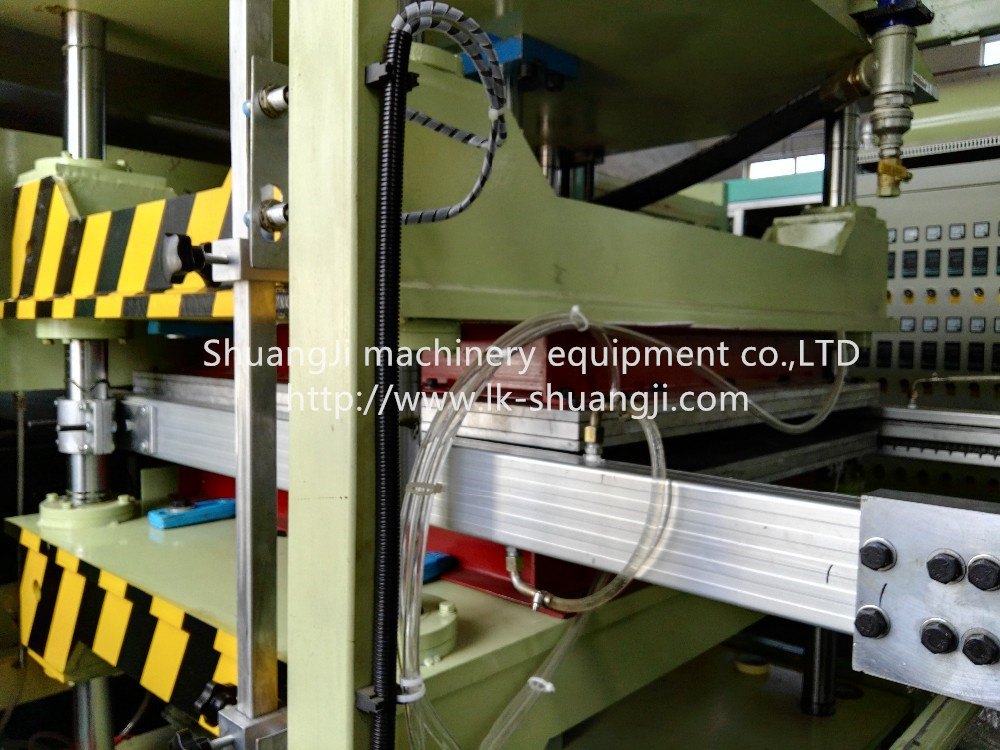

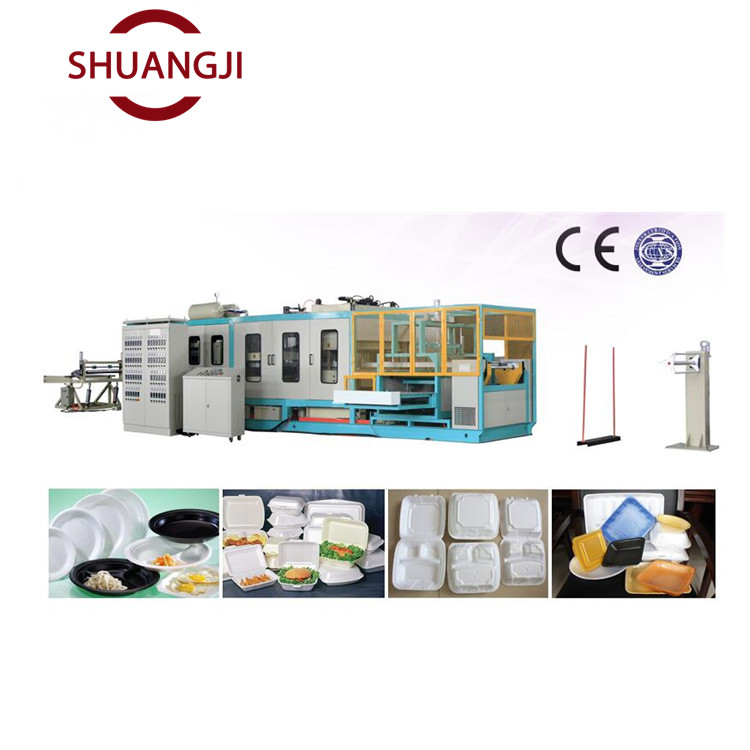

Q3: What models of the automatic vacuum forming machine are available, and how do they differ?
A3: The forming machine is available in SJ-640, SJ-1040, and SJ-1380 models. They differ primarily in maximum forming area (ranging from 640*1000mm up to 1100*1380mm), forming depth (70mm to 100mm), and total power requirement.
Q4: What is the production efficiency of the vacuum forming and cutting machine?
A4: The forming and cutting machine operates at a high production speed of 3 to 5 seconds per mould across all primary models (SJ-640, SJ-1040, and SJ-1380).
Q5: What is the output capacity of the recycle machine?
A5: Depending on your production scale, the SJ-180 series offers a recycling capacity of 80-130 kg/h, while the larger SJ-380 series can handle up to 450-500 kg/h.

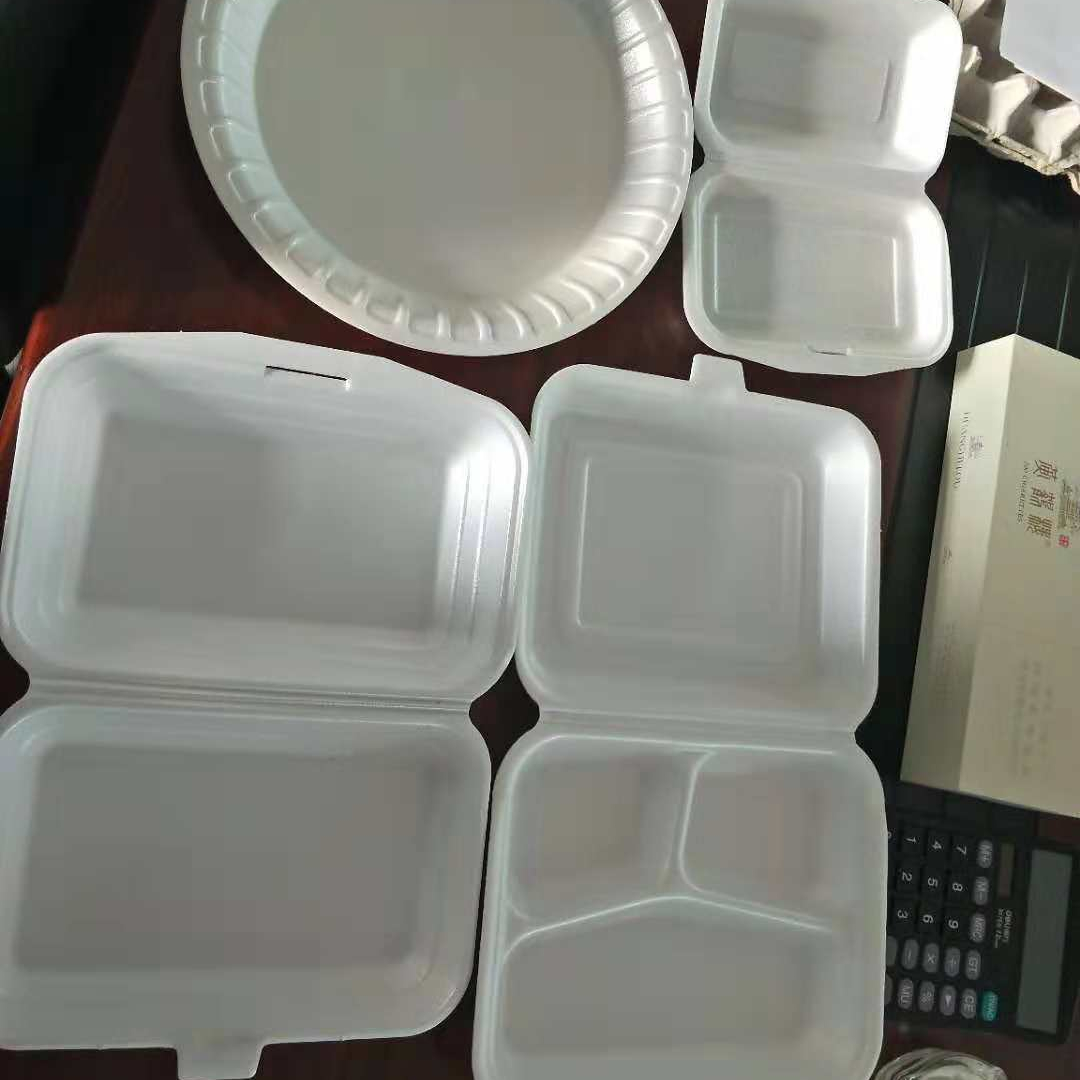

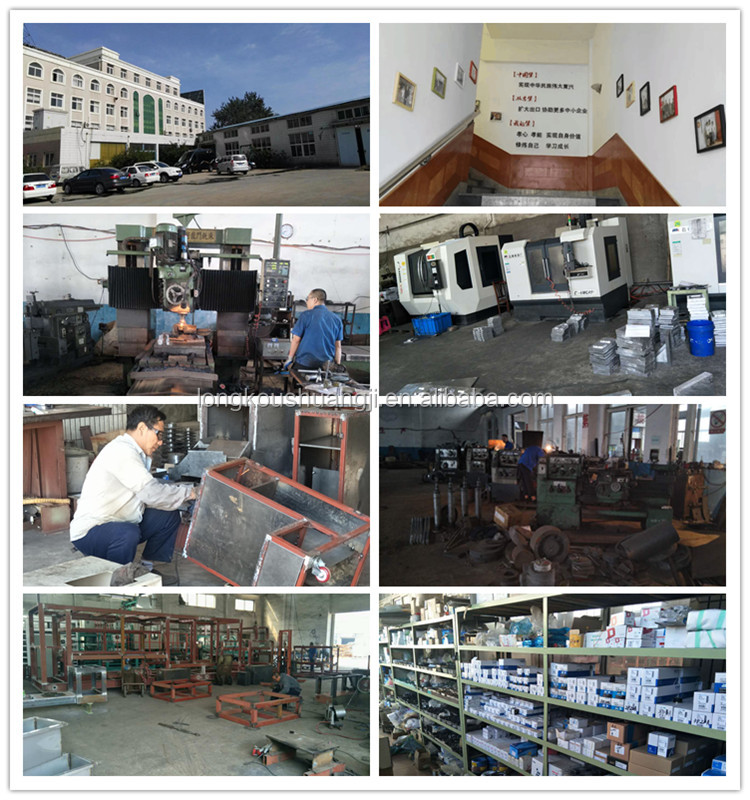

Q6: Are the molds customizable for different types of food boxes?
A6: Yes, specialized mold making is a core part of the setup, allowing you to manufacture various designs of disposable dishes, trays, and lunch boxes on the same line by changing the forming molds.
