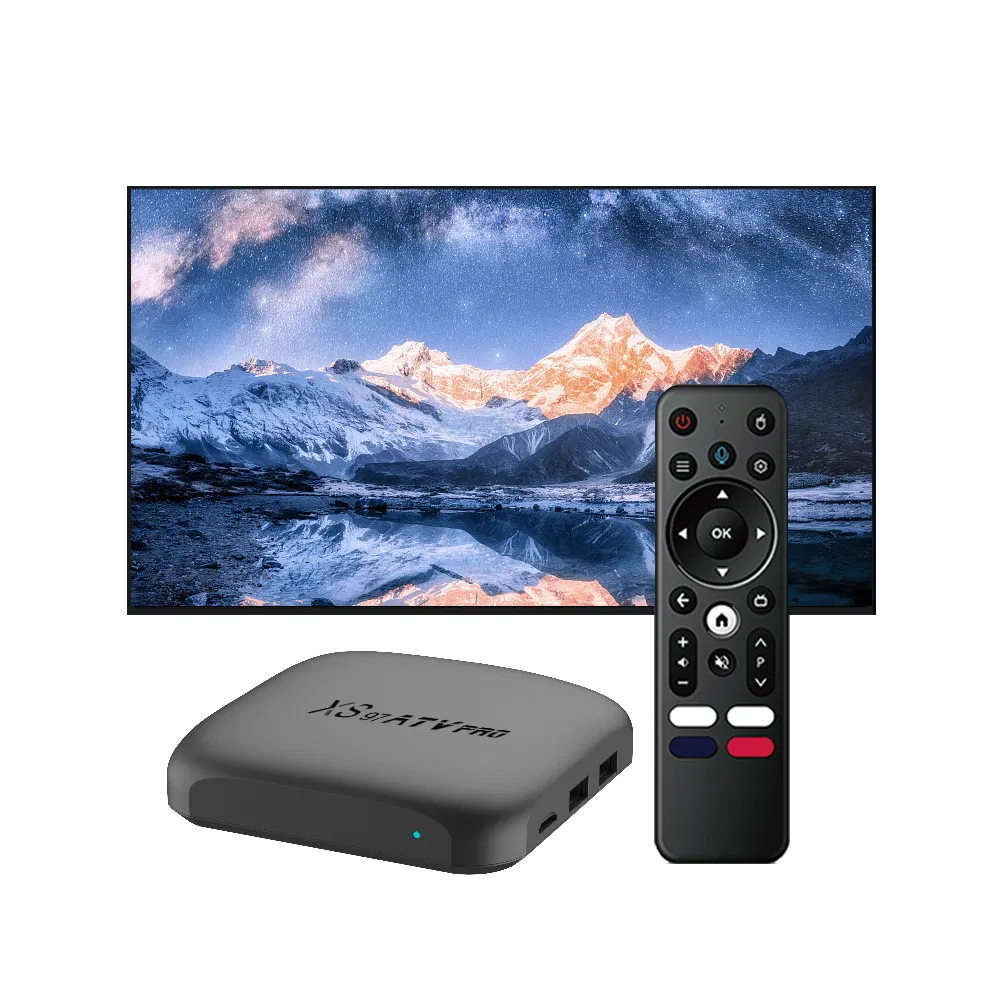

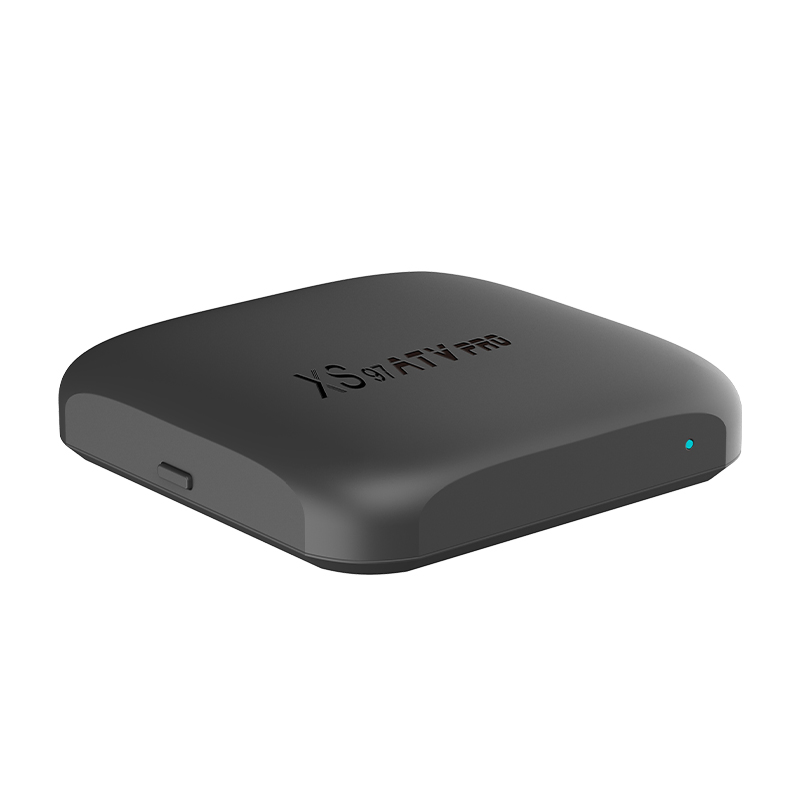

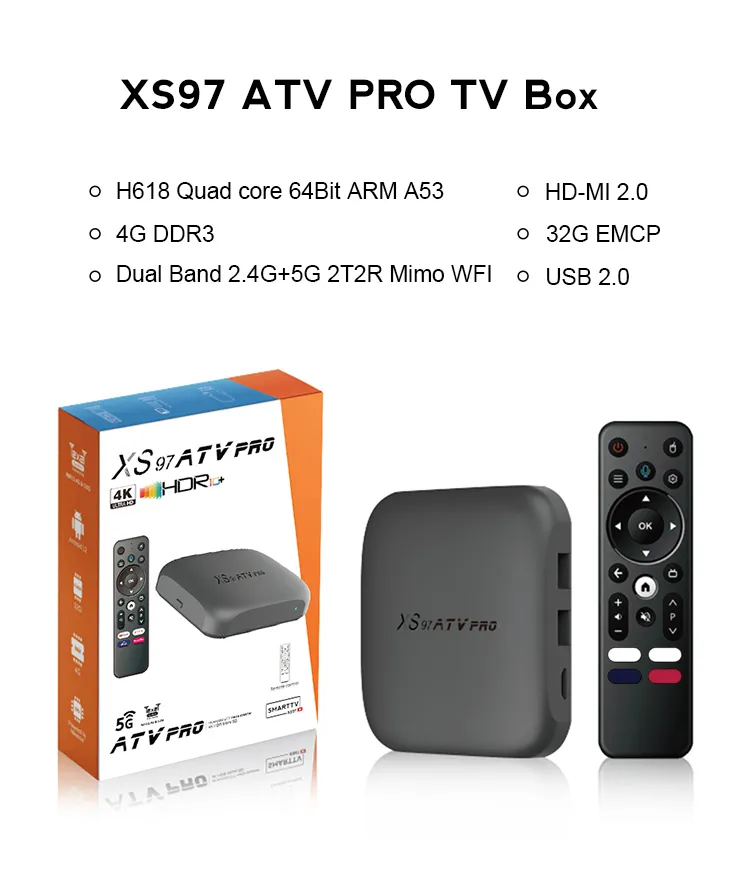

Introducing the XS97 ATV Pro TV Box, a powerful streaming device designed to elevate your home entertainment experience. Equipped with the Allwinner H618 chipset and running on Android 14, this TV box delivers seamless performance and a user-friendly interface. With its impressive 6K resolution capabilities, you can enjoy crystal-clear picture quality, making your favorite movies and shows come to life.
The XS97 ATV Pro also supports IPTV, offering a wide range of live TV channels from around the world. With 4GB of RAM and 32GB of internal storage, this TV box ensures smooth streaming and ample space for your apps and media. Whether you're a movie enthusiast or a casual viewer, the XS97 ATV Pro TV Box is the perfect companion for your streaming needs.
| Android 4K HDR Android TV Box - Model XS97 ATV Pro (V1.1) | ||
|---|---|---|
| Product Summary | ||
|
Quad core 64 bit 4K HDR Android TV Dongle Android Q TV system H.264 1080p 60fps Video encoding H.264/H.265 10bit HDR decoding up to 4K@60fps HDMI 2.0 max to 4K60 output Dual Band 2T2R Mino WIFI |
||
| Basic Parameters | ||
| System | SoC: Allwinner H618 | |
| CPU: Quad-core ARM Cortex-A53 1.5G | ||
| GPU: Mali-G31 | ||
| DRAM: DDR3 4GB | ||
| FLASH: EMMC 32GB | ||
| OS: Android 14 | ||
| Network | Build in MIMO WiFi 2T2R 2.4GHz/5GHz 802.11a/b/g/n/ac + BT 4.2 (8822BS) | |
| I/O Ports | ||
| Video Output | HDMI2.0(4K60), AV | |
| Network Connection | Buildin Wi-Fi 2 Antenna, 10/100M RJ45 | |
| Peripheral Interface | USB2.0*2, TFCARD, OPTICAL | |
| Power Interface | DC 5V 2A | |
| Media Decoders & Formats | ||
| Video |
Decoder: • H.265 [email protected] decoder up to 4K@60fps • VP9 Profile 2 decoder up to 4K@30fps • AVS2 JiZhun 10bit decoder up to 4K@30fps • H.264 BP/MP/HP decoder up to 4K@30fps • Multi-format 1080p@60fps video playback formats, including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1, MPEG-2, MPEG-4, AVS+/AVS JiZhun, WMV9/VC1, etc. |
|
| Format: MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. | ||
| Audio |
Decoder: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio, AC-3/DD+/DTS, MPEG-H |
|
| Format: MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. | ||
| Subtitle Format | SMI, SRT, SSA, ASS, SUB, SUB+IDX, ISO Navigation | |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF | |
| Features | ||
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
| DRM | Widevine Level 3 | |
| Multi-screen Interactive | Miracast, DLNA and Airplay | |
| Local Media Playback | Video/Audio/Picture | |
| TV APP Support | Stalker/Ministra/X-tream code/M3U(4K HDR10), Google Play(TV version), Google Voice Assistant, Netflix(TV Version), Disney+(TV Version), HBO Max(TV Version), Prime-Video(TV Version), Android TV APP | |
| External Storage | USB storage max to 2TB (FAT32/NTFS) | |
| System Upgrading | Upgrading via USB disk or internet | |
| Other parameters | ||
| Input Voltage | DC IN 5V/2A | |
| Power Consumption | 8W Max | |
| Operation Temp | 0~40ºC, Humidity < 95% | |
| Accessories Included | Power Adapter, User manual, HDMI cable, 22 Keys BT Voice RCU | |
We are a professional manufacturer with 16 years of experience in producing high-quality set-top boxes and smart TV boxes. Equipped with dedicated hardware and software engineering teams, we run a full production setup featuring 3 SMT production lines housing 8 Samsung SMT machines. Our daily motherboard capacity reaches up to 20,000 units.
With 7 assembly lines, our monthly capacity goes up to 400,000 set-top boxes. To guarantee premium output for global clients, we execute 8 strict QC processes for a complete quality assurance workflow from motherboard assembly to final products, managed by 6 QC teams comprising at least 24 skilled inspection members. Our strong partnerships with premium chipset providers allow us to secure competitive pricing and direct technical solutions.
