Product Description
Company Profile
Basic Info.
Certification
RoHS, CE, ISO
Screen Size
94mm(L)*41mm(W)*8mm(H)
SD Memory Size
Pdf: Max. 65000 / Pdf&Csv: Max. 20000 Readings
Measuring Medium
Temperature
Temperature Range
-30c~+70c
Temp Accuracy
0.3c at Full Range (-30c to +70c)
Memory Capacity
Pdf: Max. 65000 / Pdf&Csv: Max. 20000 Readings
Report Output
Automatic Generation Without Software
Dimensions
94mm(L)*41mm(W)*8mm(H)
Alarm Points
Max. 6 Alarm Points
Logging Interval
1 Min to 24 Hours, Configurable
Start Delay
0 Min to 24 Hours, Configurable
Connection
USB, NFC (Optional)
Report Format
Pdf/Csv/Pdf&Csv
Specification
94mm(L)*41mm(W)*8mm(H)
Production Capacity
200000/Months
Product Description

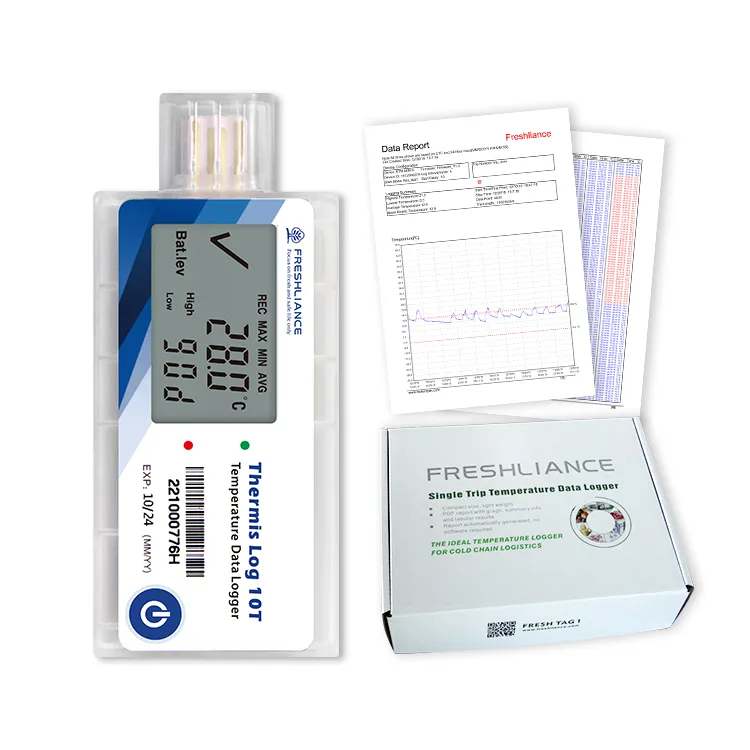

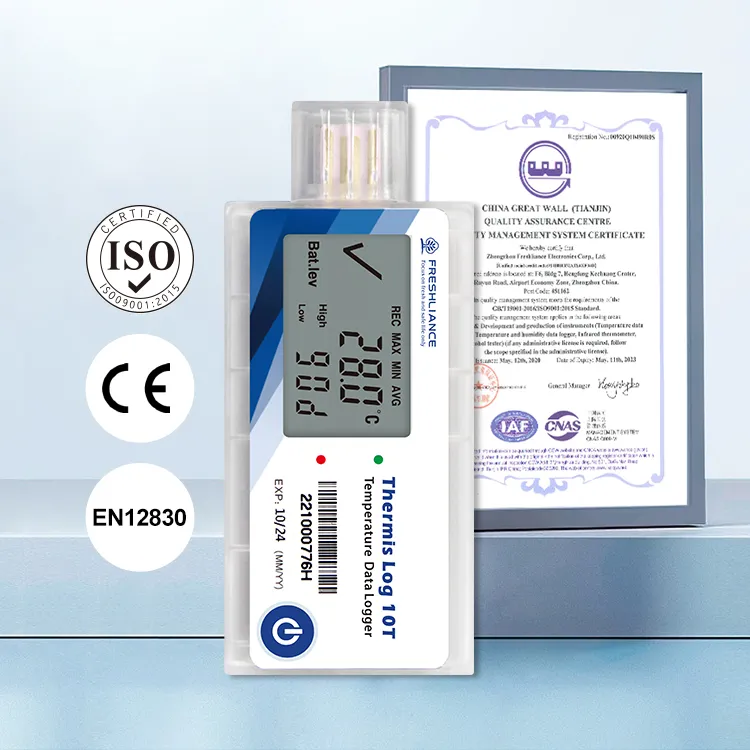

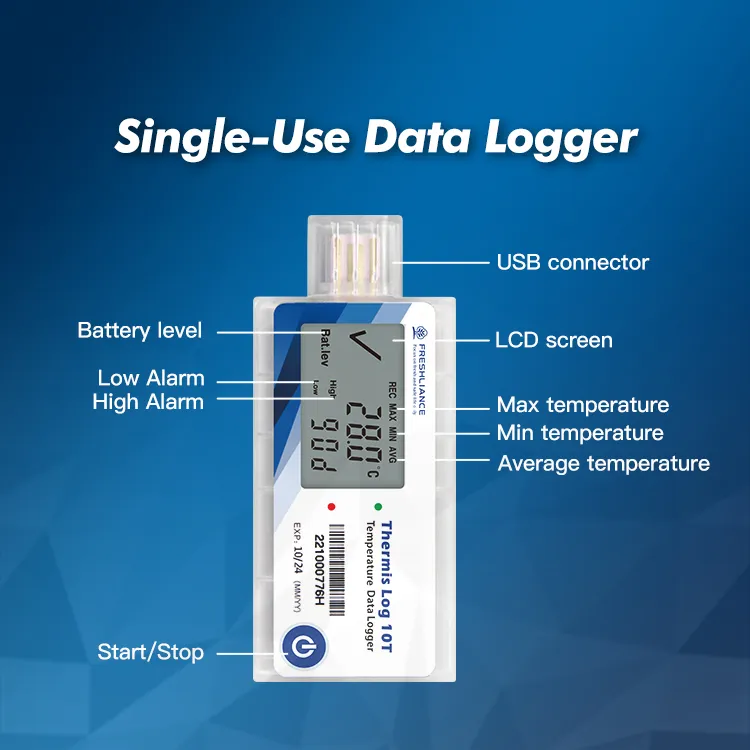

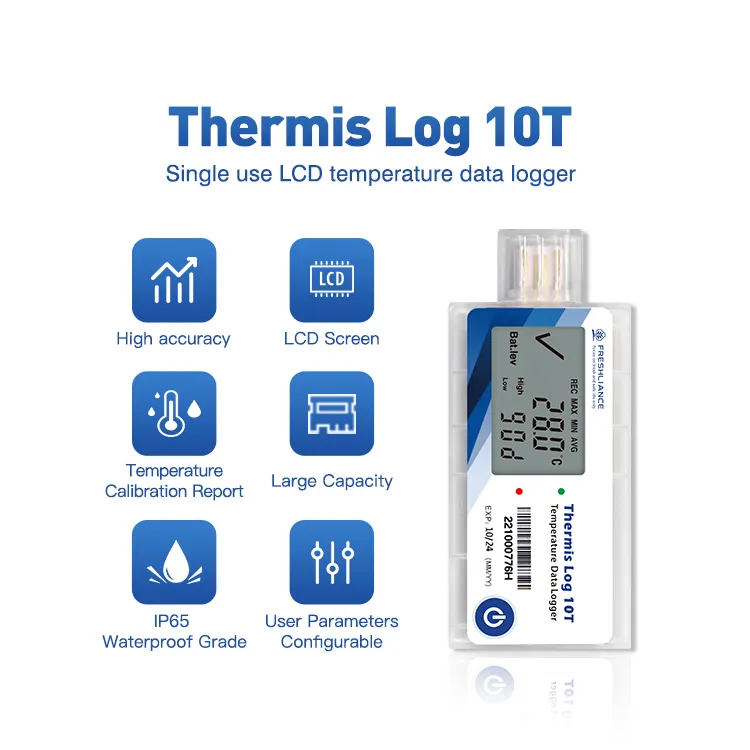

Thermis Log 10T Single-use Temperature Data Logger
Features:

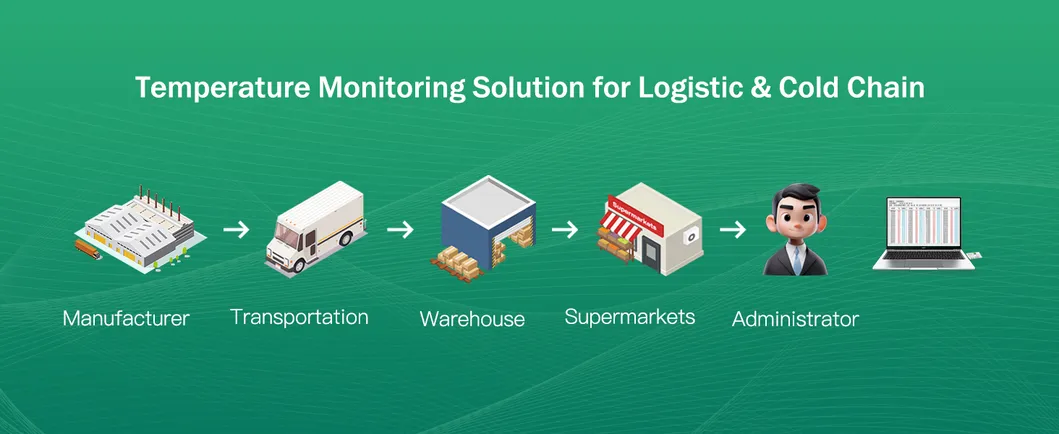

- Reliable tool for monitoring temperature during transport and storage of sensitive products, especially pharmaceuticals

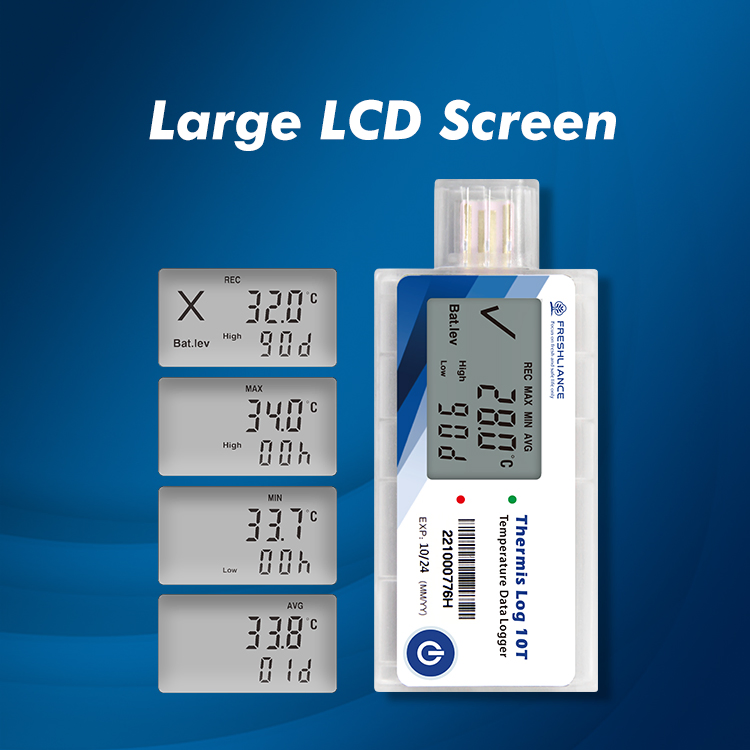

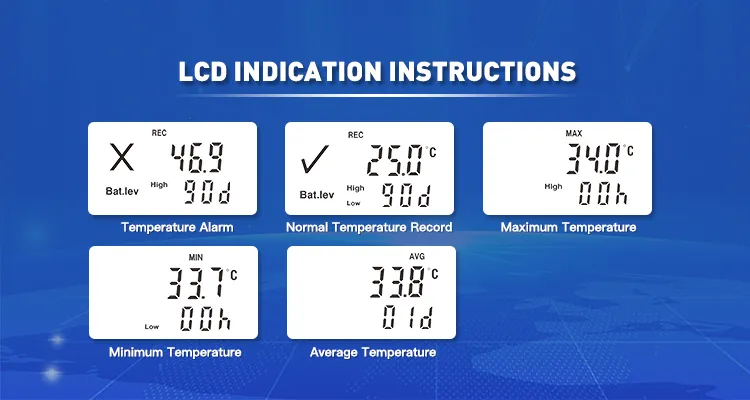

- LCD screen for easy temperature reading

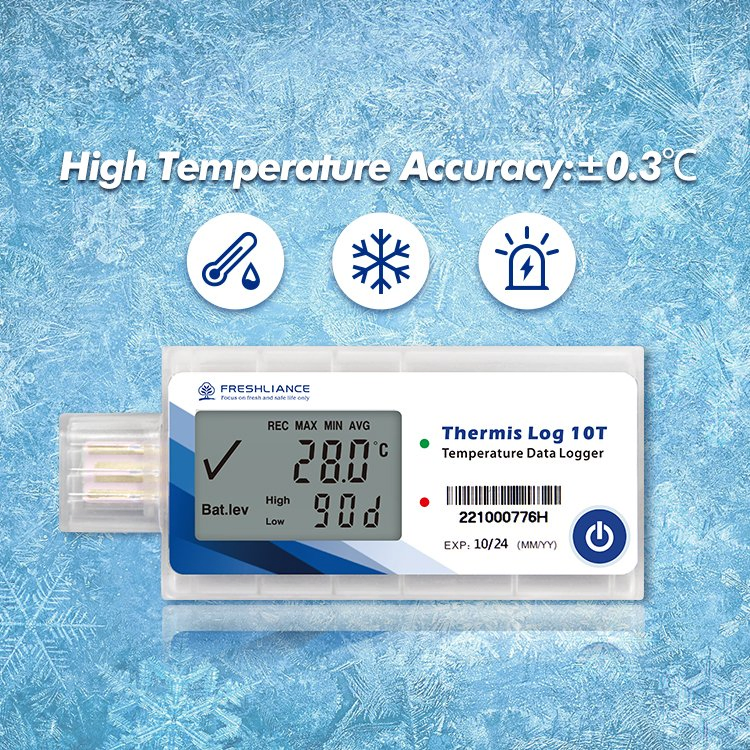

- Measurement accuracy of ±0.3ºC for precise tracking
- Food-grade, waterproof packaging for durability
- Compact and thin design for discreet placement
- Built-in calibration verification for enhanced accuracy

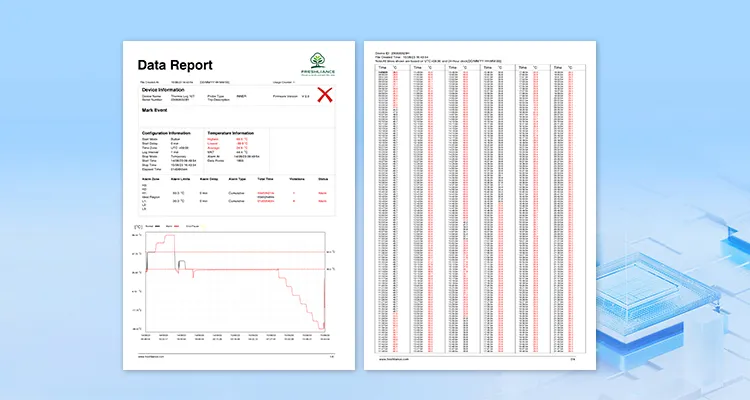

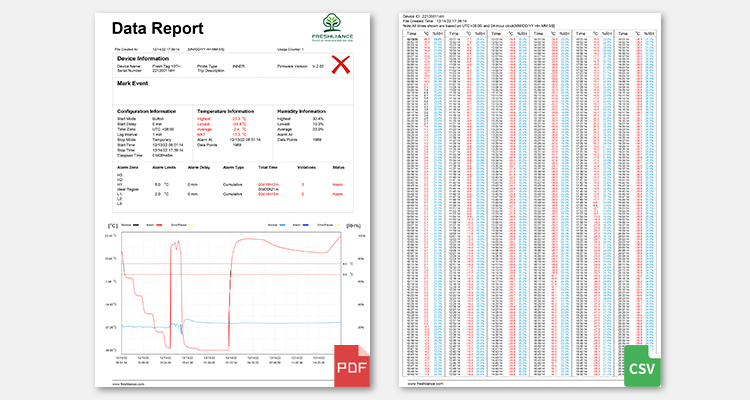

- PDF and CSV reports available for simplified data analysis

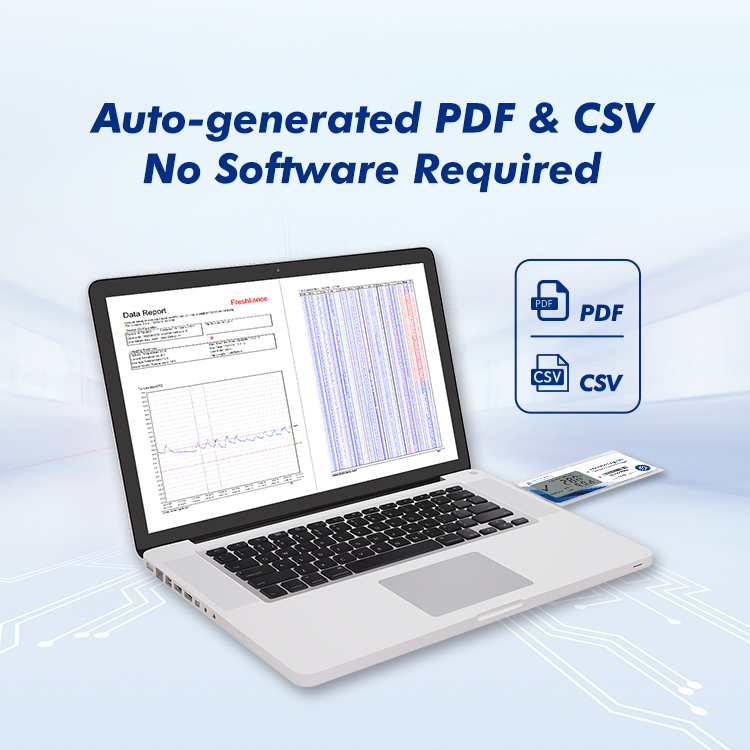

- No additional software required, simply connect to a PC for report access
| Model |
Thermis Log 10T |
Working Days |
Up to 120 days |
| Temperature Range |
-30ºC~70ºC |
Temperature Accuracy |
±0.3ºC at full range (-30ºC to +70ºC) |
| Logging Interval |
Configurable |
Connection |
USB, NFC (optional) |
| Start Delay |
Configurable |
Protection Grade |
IP65 |
| Memory Capacity |
PDF: Max. 65000 readings
PDF&CSV: Max. 20000 readings |
Battery |
CR2032 |
| Display |
LCD, LED |
Alarm Points |
Max. 6 alarm points |
| Dimensions |
94mm(L)*41mm(W)*8mm(H) |
Weight |
27.5g |
Thermis Log 10T Single Use Sensor
Ensure the safe transport and storage of vaccines with our Single Use sensor temperature USB data logger. Made in Japan, this sensor offers truly ±0.3ºC accuracy, ideal for pharmaceuticals, food, life science, and more.
Key Features:
- High accuracy sensor made in Japan
- Suitable for pharmaceuticals, food, life science, and more
- USB data logger for easy temperature monitoring
- Irreversible temperature tracking
- PDF Logging, CSV temperature history, and online IOT logging available
Company Profile
About Us

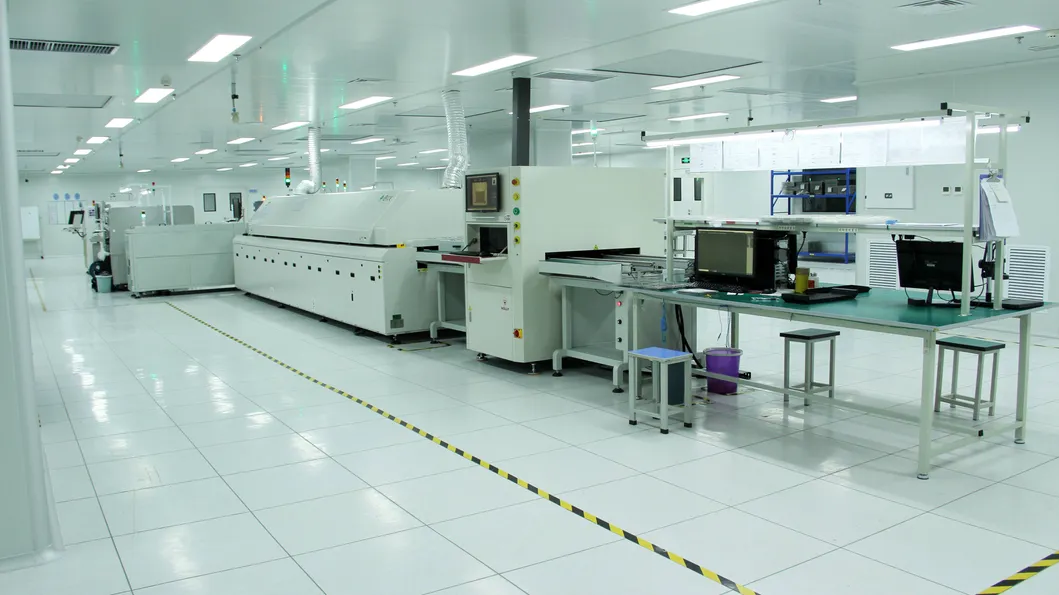

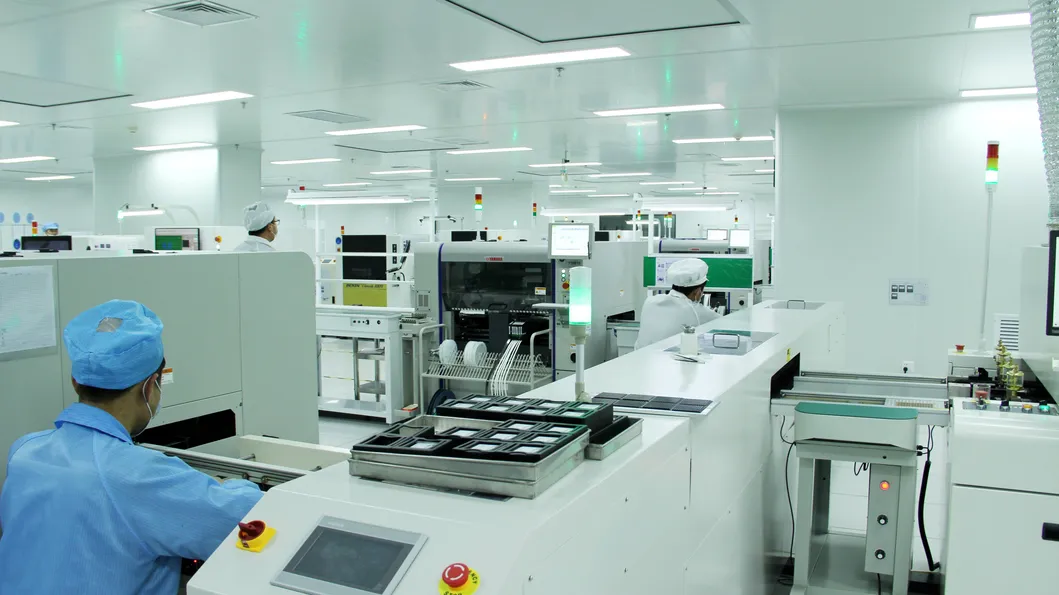

We are an ISO9000-certified enterprise specializing in temperature and humidity data loggers and environmental monitoring IOT systems for various industries. Our professional R&D team designs products based on customer needs, ensuring high accuracy in temperature and humidity monitoring, even in temperatures below -40ºC.
Our products comply with CE, FDA, ROHS, EN12830, and RTCA/DO-160 standards, offering stability, durability, and advanced functionality. We aim to provide innovative, accurate, and high-quality products with excellent customer service. OEM and ODM orders are welcome!
Why Choose Us:
- 10 million pcs logger used by customers worldwide
- Independent laboratory verifies product performance

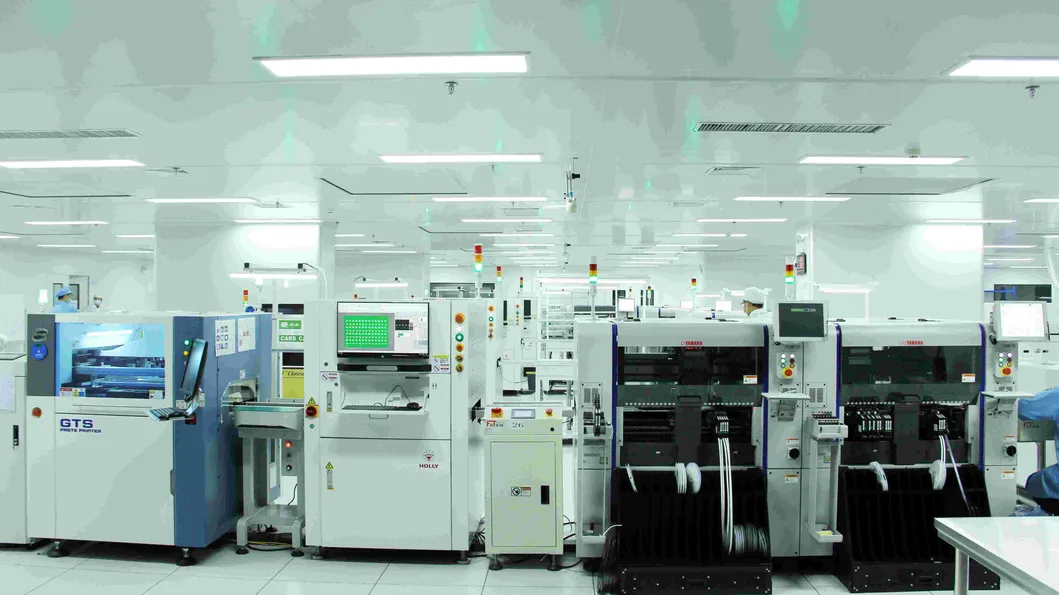

- Ultimate production ability backed by actual data
- Professional FDA, CE, EN12830, and ROHS certifications
- Wide range of loggers to meet diverse needs
- Cost-effective with expert quality
- 24/7 customer service for fast response and delivery
- Private label and complete one-stop OEM service
- ISO certified manufacturer with quality assurance
Frequently Asked Questions
What is the accuracy of the Thermis Log 10T data logger?
The Thermis Log 10T offers a high measurement accuracy of ±0.3ºC across its full temperature range of -30ºC to +70ºC, ensuring precise data tracking for sensitive goods.

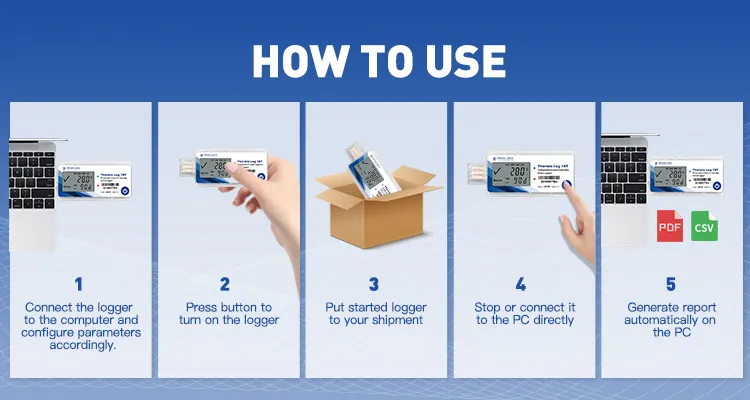

Does this temperature logger require special software to extract reports?
No, it automatically generates PDF and CSV reports once connected to a PC via its USB port. No additional software installation is required.
How long does the battery last and what is the run time?
Powered by a CR2032 battery, the temperature data logger has a maximum working life of up to 120 days.
Is the device waterproof and safe for food or pharma products?
Yes, the device features food-grade, waterproof packaging with an IP65 protection grade, making it highly durable and safe for vaccines, pharmaceuticals, and food storage.
What is the data storage capacity of the logger?
The memory capacity supports a maximum of 65,000 readings for PDF format, and a maximum of 20,000 readings for PDF & CSV formats combined.
Can the logging interval and start delay be configured?
Yes, both the logging interval (from 1 minute to 24 hours) and the start delay (from 0 minutes to 24 hours) are user-configurable based on project requirements.
